Security Manual
Document Title	Security Manual Kirkstone
Document Type	Security Manual
Last modified	2025/05/20
Is Branch of	Security Manual

Compatible BSPs	BSP Release Type	BSP Release Date	Security Support Status
BSP-Yocto-Ampliphy-i.MX6-PD22.1.0	Major	14.12.2022	full
BSP-Yocto-Ampliphy-i.MX6-PD22.1.1	Minor	20.06.2023	full
BSP-Yocto-Ampliphy-i.MX6UL-PD22.1.0	Major	11.08.2022	full
BSP-Yocto-Ampliphy-i.MX6UL-PD22.1.1	Minor	23.05.2023	full
BSP-Yocto-NXP-i.MX8MM-PD23.1.0	Major	12.12.2023	full
BSP-Yocto-NXP-i.MX8MP-PD23.1.0	Major	12.12.2023	full
BSP-Yocto-Ampliphy-AM62x-PD23.2.0	Major	28.09.2023	partly
BSP-Yocto-Ampliphy-AM62Ax-PD23.1.0	Major	28.09.2023	partly
BSP-Yocto-Ampliphy-AM64x-PD23.2.0	Major	28.09.2023	partly

This manual applies to all Kirkstone based PHYTEC releases.

1. Introduction

PHYTEC’s Yocto distribution Ampliphy (former Yogurt) supports different Security mechanism. The security features have impact to the bootloader, the Linux kernel, Device Tree, and root filesystem. This manual describes how Security featuresis used and implemented on various PHYTEC platforms. Note, that different modules use different bootloaders and flash storage devices, which affects the way things are handled. Make sure to read the correct sections fitting your platform.

Note

This manual contains machine-specific paths and variable contents. Make sure you are using the correct machine and device names for your application when executing any commands.

2. SECURIphy Overview

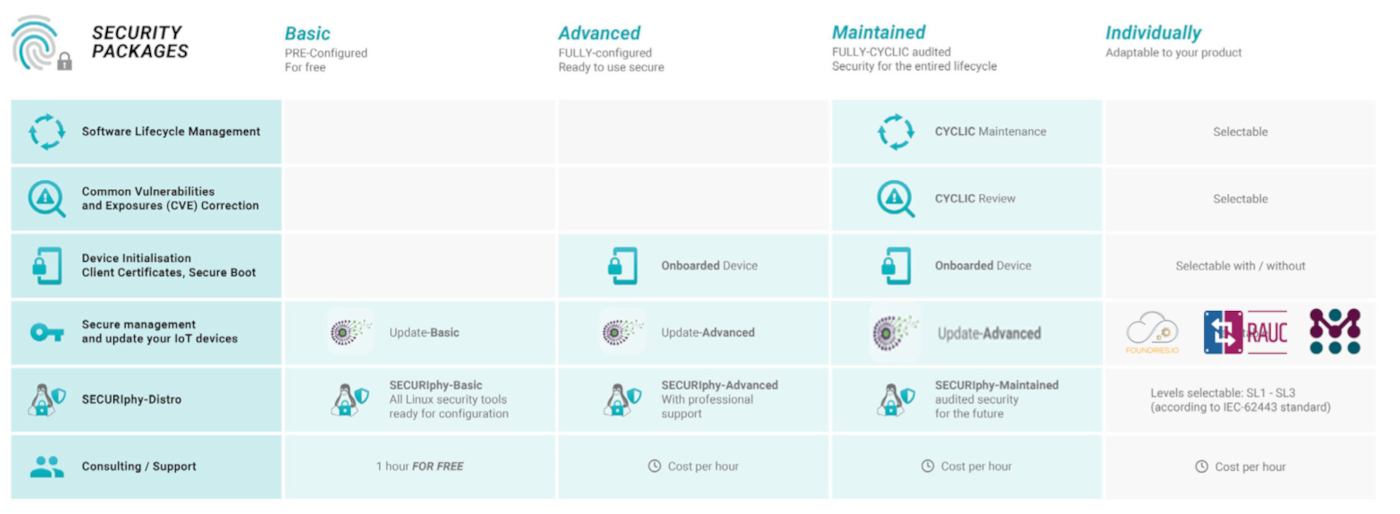

SECURIphy is the PHYTEC secure linux distribution and a part of the security packages phyKNOX.

With increasing digitization and networking, the protection of embedded systems against unauthorized access and targeted attacks is more important than ever. Guaranteeing this type of security, along with functional security, is a major challenge in electronics design. PHYTEC supports you in minimizing risks by considering security requirements during the development of our hardware and board support packages. On top of these deployment-ready solutions, we support you with individual project consulting on complex security principles.

Security is a process encompassing all parts of a device and all development phases of its lifetime.

2.1. Short Crypto Refresher

Function	Description
Symmetric cryptography	The same key for encryption or decryption
Public key cryptography	Two mathematically dependent keys for encryption or decryption. The public key is used for encryption while the private key is used for decryption.
Hash	One-way function, fixed output size (SHA*)
HMAC	Data authentication using hash and shared secret
Signature	Data authentication using public-key cryptography (keys & certificates, RSA & ECDSA)
Unauthenticated encryption	Attackers can‘t read private data but could modify it (AES-CBC, AES-XTS, …)
Authenticated encryption	Attacker can‘t read private data and modification is detetcted (AEAD: AES GCM, AEGIS)
Trusted Keys	Symmetric key with variable length is a key type of the existing kernel keyring service. Require the availability of a Trust Source for greater security like a TPM, NXP CAAM or TEE
Encrypted Keys	Symmetric key with variable length is a key type of the existing kernel keyring service.

2.2. Recommended Security Requirements

As of the writing of this manual, recommendations apply to key lengths, certificates, and hash values. These recommendations come from BSI (Bundesamt für Sicherheit in der Informationstechnik) and NIST (National Institute of Standards and Technology).

In the technical and connected world, it is important to build a “security by design” approach that thwarts intrusion into your product, data, and intellectual property at multiple levels.

Here are the Security features from the Standard BSP.

• Basic Security

  Basic Security is the fundament of the security measures implementations and includes support for basic modules such as:

  • True Number Generator and Cryptographic support

  • Secure Boot

  • Secure Key Storage and Usage

  • Secure Storage

  • Secure Updates

• Parts from Access Control

  Access Control regulates the access of users and services to the device and components in the device according to the least privilege access principle.

  • Secure Console

  • Secure Shell

  • User and Role Management

• Provisioning

  Provisioning includes the activation of hardware security features like Secure Boot and the generation of specific keys and X509 certificates on the device in secure manufacturing like the PHYTEC secure production area.

More Additional Security Features (not part of this BSP)

• Network Security

  Network Security enables secure connections to connected devices or servers via Ethernet, WLAN, and LTE, but also secures access to the device from outside.

  • Remote Access

  • Server, Cloud Integration Tools

  • Intrusion Protection

  • Firewall

  • Container

• Interface Security

  Interface Security secures the interfaces against third-party access and enables the secure connection of intended devices.

  • USB

  • Field Bus

• Hardening

  Hardening refers to the reduction of software components and kernel configuration to a necessary minimum.

• Physical Security

  Physical Security secures the device from direct physical access to protect the corresponding application and data from external access.

  • Secure Debug

  • Tamper Protection

  • Housing

  • Encapsulation of the circuit board

3. Enable Security

Note

Distro ampliphy-secure, ampliphy-vendor-secure, ampliphy-provisioning and ampliphy-vendor-provisioning are sample Yocto distros like ampliphy with additional security pre-configurations. Additional security measurements for production usage are necessary and depend on your threat model.

PHYTEC services can support your implementation.

3.1. Distro ampliphy-secure and ampliphy-vendor-secure

The distro ampliphy-secure or ampliphy-vendor-secure with the phytec-security-image is an example of a production image with secure-update support. The phytec-security-image.rootfs.wic or phytec-security-image.rootfs.partup can boot only from an eMMC!

For devices based on the TI K3 controller (AM6 series) the MACHINE variable in the $BUILDDIR/conf/local.conf should be set to HS-SE machine variant.

3.2. Distro ampliphy-provisioning and ampliphy-vendor-provisioning

The distro ampliphy-provisioning or ampliphy-vendor-provisioning with the phytec-provisioning-image is for the production or the first initialization of your device based on a NXP controller in a secure area. The phytec-provisioning-image.rootfs can boot directly from an SD card to a Kernel with a minimal initramfs to

• install the phytec-security-image.rootfs as wic or partup to the eMMC

• initialize the secure key storage on the device

• initialize the secure storage on the device

For devices based on the TI K3 controller (AM6 series) use the distro ampliphy and build the phytec-headless-image to boot from sd-card. The MACHINE variable in the $BUILDDIR/conf/local.conf should be set to the HS-SE machine variant.

3.3. The different machines for TI K3 controller

The HS-SE machine variant is the machine with secure boot enabled, so it will be built with signed bootloaders. For the TI K3 controller exist different machines for

• General Purpose (GP): The device is not capable of secure operation

• High Secure - Field Securable (HS-FS): is the state of a K3 device before it has been eFused with customer security keys.

• High Secure - Security Enforced (HS-SE): devices enforce an authenticated boot flow for secure boot.

Board	HS-FS device	HS-SE device
phyCORE-AM62Ax	phyboard-lyra-am62axx-2
phyCORE-AM62x	phyboard-lyra-am62xx-3	phyboard-lyra-am62xx-4
phyCORE-AM64x	phyboard-electra-am64xx-2	phyboard-electra-am64xx-3
phyCORE-AM68x	phyboard-izar-am68x-2	phyboard-izar-am68x-3

For NXP controller based boards do not exists different machines for devices with activated and not activated Secure boot, because signed images can be booted independence of the device state.

3.4. Enable Security Features in your own Distro

Activate the following DISTRO_FEATURES in your distribution

DISTRO_FEATURES	Description
secureboot	for building a signed bootloader and kernel FIT-Image
securestorage	All necessary tools and configurations for file encryption and integrity initialization on the board
protectionshield	Three levels low, medium, and high Four examples: users root, phyadmin, phyuser, phyread Password protection for bootloader and kernel serial and ssh
hardening	Example kernel reduction for machine features
kernelmodsign	Enabled Linux kernel module signing, so only modules signed with a specific key can be loaded.
update	Activate rauc A/B update system

4. Secure Boot

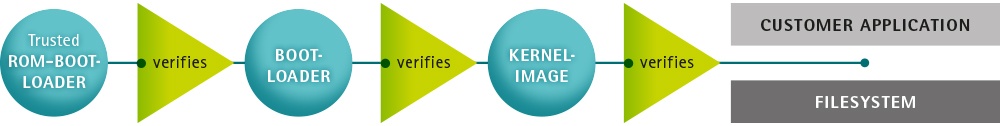

4.1. Chain of Trust

Secure boot is used to ensure that only trustworthy, signed software can be executed on the controller. This is the first stage of the Chain-of-Trust. With the Chain-of-Trust, signed programs are always started by other previously verified programs. This ensures that even the end application is at the highest layer of trustworthiness.

4.2. Boot Process

The boot process differs between the SOC and the vendor of the SOC’s. The main boot process is the following

1. The Trusted ROM-bootloader, which is part of the SOC, verifies the boot container (U-boot spl, ATF, firmware, op-tee) with the internal unit (Boot Step 1)

SOC	Unit	Boot mode
NXP i.MX6, i.MX6UL, NXP i.MX8M Mini/Plus	NXP HABV4	Single: Cortex-A
NXP i.MX93, i.MX91, i.MX95	NXP AHAB + EdgeLock secure enclave	LPboot: M33 Single: A35 -> M33 DUAL: M33 + A35
TI AM62x, AM64x, AM68x	R5

2. u-boot SPL loads u-boot proper from the FIT image and ATF (ARM Trusted Firmware) and optionally OP-TEE.

3. Then, u-boot loads and verifies the FIT image containing a Linux kernel, DTB, and ramdisk. (Boot Step 2)

4. If built with signed kernel modules (standard), Linux will only load kernel modules verifies with a kernel compiled in public key

If you use the DISTRO_FEATURE secureboot or a TI HS-SE machine variant, then the bootloader is configured additionally:

1. The bootloader is signed and is used in the images (wic, partup and bmap).

2. The bootloader boots only signed kernel fitImage after a verification.

3. The bootloader use only the built-in environment and only loads some necessary variables for RAUC update mechanism.

4.3. Image Signing

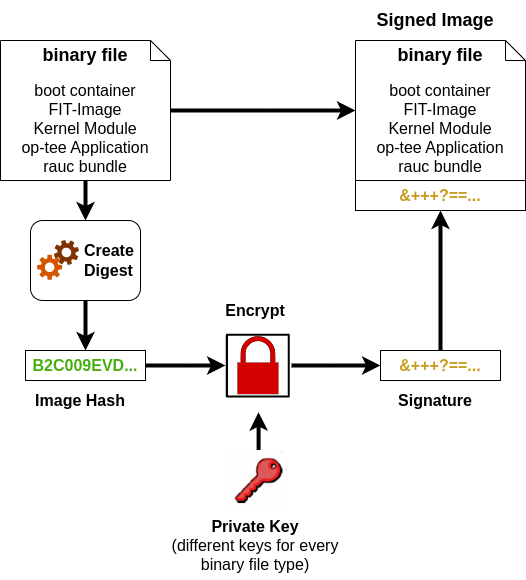

In the following flowchart you can see the signing process for different parts of an image.

1. A Hash is created for the binary file like the boot container, Kernel FIT image, kernel modules, op-tee applications or the rauc update bundle.

2. A signature is from the hash with a private key.

3. The signature is added to the binary file.

4.4. Flattened Image Tree (FIT)

FIT images are used with Secure Boot as standard format for packing kernel, device-tree and optional initramfs. The FIT image are signed in the yocto build with a Private Key. The public key is on the target, compiled in the bootloader or the NXP HAB keys are used. Documentation about FIT is available in the Flattened Image Tree project.

There are two different yocto classes for creation of a signed FIT image.

• PHYTEC sources/meta-phytec/classes/fitimage.bbclass

  • With FIT image recipes you can define more separate FIT images.

  • Example for FIT image recipes are in sources/meta-ampliphy/recipes-images/fitimage/

  • To create a own FIT image, you need to specify some variables in the recipe:

    • FITIMAGE_SLOTS: Use this to list all slot classes for which the FIT image should contain images. A value of “kernel fdt fdtapply”, for example, will create a manifest with images for two slot classes - kernel and devicetree.

    • FITIMAGE_SLOT_<slotclass>: For each slot class, set this to the image (recipe) name which builds the artifact you intend to place in the slot class.

    • FITIMAGE_SLOT_<slotclass>[type]: For each slot class, set this to the type of image you intend to place in this slot. Possible types are the kernel, fdt, fdto, fdtapply, or ramdisk.

    • FITIMAGE_SLOT_<slotclass>[file]: For slot type kernel, fdt, fdt0 and fdtapply set this to the file of the image you intend to place in this slot.

    • FITIMAGE_SLOT_<slotclass>[fstype]: For slot type ramdisk, set this to the filesystem type of image you intend to place in this slot.

    • FITIMAGE_SLOT_<slotclass>[name]: For slot type fdtapply, set this to the final device tree and configuration name.

• poky sources/poky/meta/classes-recipe/kernel-fitimage.bbclass

  • This is the standard upstream FIT image class in yocto mainly for u-boot, which built one FIT image with initramfs and without initramfs.

At first the PHYTEC FIT image class is used to create the FIT images, because it supports barebox and u-boot and you can define more separate FIT images. Since security has increasingly become an integral part of the SoC manufacturer’s BSPs, which use the kernel-fitimage, PHYTEC has decided to gradually switch to this class, too.

4.5. Configuration Class for Signing images

All variables to adjust the bootloader and kernel fitImage signing process can be found in the source/meta-ampliphy/secureboot.bbclass

At first the necessary variables for signing the bootloader for the different SOC types. The variable BOOTLOADER_SIGN is obsolete, because the DISTRO_FEATURES secureboot includes the Bootloader signing.

BOOTLOADER_SIGN ??= "true"
BOOTLOADER_SIGN[type] = "boolean"

CERT_PATH ??= "${OEROOT}/../../phytec-dev-ca"
# for NXP HABv4 based systems
BOOTLOADER_SIGN_IMG_PATH ??= "${CERT_PATH}/nxp_habv4_pki/crts/IMG1_1_sha256_4096_65537_v3_usr_crt.pem"
BOOTLOADER_SIGN_CSF_PATH ??= "${CERT_PATH}/nxp_habv4_pki/crts/CSF1_1_sha256_4096_65537_v3_usr_crt.pem"
BOOTLOADER_SIGN_SRKFUSE_PATH ??= "${CERT_PATH}/nxp_habv4_pki/crts/SRK_1_2_3_4_table.bin"
BOOTLOADER_HABV4_SRK_INDEX ??= "0"

# AHAB
AHAB_SRK_TABLE_BIN ?= "${CERT_PATH}/nxp_ahab_pki/crts/SRK_1_2_3_4_table.bin"
AHAB_SRK_PUB_CERT ?= "${CERT_PATH}/nxp_ahab_pki/crts/SRK1_sha512_secp521r1_v3_usr_crt.pem"
AHAB_SRK_INDEX ?= "0"

# for TI K3
BOOTLOADER_TI_K3_MPK_KEY ??= "${CERT_PATH}/ti_k3/keys/phytecSMPK.pem"
BOOTLOADER_TI_K3_DEGENERATE_KEY ??= "${CERT_PATH}/ti_k3/keys/ti-degenerate-key.pem"

In the following view you can see the necessary variables for signing with the PHYTEC FIT image class. The FITIMAGE_PUBKEY_SIGNATURE_PATH is only important, when using the FITIMAGE_SIGN_ENGINE="software". This means, that the u-boot validates the kernel fitImage und use the compiled in public key. The alternative is that the NXP HAB unit validates the kernel fitImage, then the FITIMAGE_SIGN_ENGINE="nxphab" must be set. This is only possible for NXP SOC’s with HAB unit and u-boot as bootloader. The following configuration are in the sources/meta-ampliphy/secureboot.bbclass

FITIMAGE_SIGN ?= "true"
FITIMAGE_SIGN[type] = "boolean"

FITIMAGE_NO_DTB_OVERLAYS ?= "false"
FITIMAGE_NO_DTB_OVERLAYS[type] = "boolean"

FITIMAGE_SIGNER ?= "customer"
FITIMAGE_PUBKEY_SIGNATURE_PATH ?= "${WORKDIR}/signature_node.dtsi"

FITIMAGE_SIGN_ENGINE ?= "software"

FITIMAGE_SIGN_KEY_PATH ?= "${CERT_PATH}/fit/FIT-4096.key"
FITIMAGE_HASH ?= "sha256"
FITIMAGE_SIGNATURE_ENCRYPTION ?= "rsa4096"
FITIMAGE_SIGNER_VERSION ?= "vPD20.0.0"

The signing with the poky kernel-fitimage class needs the following configuration in

• machine configuration in sources/meta-phytec/conf/machine for the kernel, initrd, device-tree and device-tree overlay LOADADDRESS and ENTRYPOINT addresses

• source/meta-ampliphy/secureboot.bbclass for the signing key parameter

  UBOOT_SIGN_KEYDIR = "${CERT_PATH}/fit"
  UBOOT_SIGN_KEYNAME = "FIT-4096"
  FIT_SIGN_ALG = "rsa4096"
  FIT_HASH_ALG = "sha256"


• sources/meta-ampliyphy/conf/distro file for the INITRAMFS_IMAGE.

  • ampliphy-secure and ampliphy-vendor-secure: INITRAMFS_IMAGE = "phytec-secureboot-initramfs"

  • ampliphy-provisioning and ampliphy-vendor-provisioning: INITRAMFS_IMAGE = "phytec-provisioning-initramfs"

4.6. Building a signed image

To build a signed provisioning image for the configuration of the device, which can boot from sd-card or Serial Downloader, then the DISTRO needs to be set to ampliphy-vendor-secure or ampliphy-secure. The main parts for the provisioning-image are the bootloader and the fitImage, which includes an initramfs with all necessary tools.

# for NXP SOC
host:~$ bitbake phytec-provisioning-image

# for TI K3 SOC
host:~$ bitbake phytec-headless-image

To build the phytec-security-image for the eMMC or ubifs with rauc update support, then the DISTRO needs to be set to ampliphy-vendor-secure or ampliphy-secure.

# for all SOC
host:~$ bitbake phytec-security-image

Note

If you have some boot warnings or errors like /initrd.image: incomplete write or the kernel boot fails, then please check the size for cma (kernel boot parameter, setting in bootloader). The allocate RAM for cma can be too much, which is import for systems with 256 MByte or 512 Mbyte RAM.

5. Activate Secure Boot on the Device

The final step to activate secure boot on your device is to burn the secure eFuse configuration.

Warning

The secure eFuse configuration can only be written once and is irreversible!

For Secure Boot are only public information are burned to SOC from NXP and TI. When building the yocto-secure distro for the first time, the bootloader image is signed with PHYTEC’s development keys. Yocto stores these development keys to yocto/phytec-dev-ca

Note

Create and use your own keys and certificates for signing your images. Burn the right key into the Controller eFuse. Please refer to the chapter Secure Key Storage

5.1. eMMC Boot Partition to Enable Boot

If you install your eMMC with the partup image, then the eMMC is configured with the right configuration. If you install the bootloader standalone on the eMMC, then please check the eMMC configuration for the right partition.

	barebox	u-boot
Set eMMC as an active device	barebox$ detect mmc3	u-boot=> mmc dev 2
Show active boot partition	barebox$ devinfo mmc3	u-boot=> mmc partconf 2
Set user area for boot	barebox$ mmc3.boot=disabled	u-boot=> mmc partconf 2 0 7 0
	disabled: user partition boot0: Boot partition 0 boot1: Boot partition 1	0x7: user partition 0x1: Boot partition 0 0x2: Boot partition 1

Active boot output for barebox:

...
Parameters:
boot: disabled (type: enum) (values: "disabled", "boot0", "boot1", "user")
nt_signature: 9a54880c (type: uint32)
probe: 0 (type: bool)

Active boot output for u-boot

EXT_CSD[179], PARTITION_CONFIG:
BOOT_ACK: 0x0
BOOT_PARTITION_ENABLE: 0x1
PARTITION_ACCESS: 0x7

5.2. Activate Secure Boot for NXP SOC

For NXP SOC you can burn the Fuses with u-boot or with the tool crucible in the kernel userspace. The necessary SRK fuses contain the hash value of the SRK public keys. They are never used on open devices! In closed devices, they are used to validate the public key contained in signed firmware images. Before closing the device, you must store the hash of the public keys in the SRK OTP bits on the device. This will allow the ROM loader to validate the public key included in signed firmware images.

• NXP i.MX with HAB: example SRK_1_2_3_4_fuse.bin file in yocto/phytec-dev-ca/nxp_habv4_pki/crts/SRK_1_2_3_4_fuse.bin

If you build the signed bootloader, then the following tools are available in the bootloader.

5.2.1. Check the current state of your device

• NXP i.MX6 with HAB and bootloader barebox

barebox$ hab -i
Current SRK hash:
0000000000000000000000000000000000000000000000000000000000000000
devel mode

• NXP i.MX8M Series with HAB and bootloader u-boot

u-boot=> hab_status
Secure boot disabled

HAB Configuration: 0xf0, HAB State: 0x66
No HAB Events Found!

5.2.2. Burn the SRK

• NXP i.MX6 with HAB and bootloader barebox you can copy the SRK_1_2_3_4_fuse.bin to the device with e.g. tftp and burn directly with

barebox$ hab -p -s SRK_1_2_3_4_fuse.bin

to check

barebox$ hab -i
Current SRK hash:
3425849ab41a49b07ba0b6d5e7dc92fd7cc80dc1a904bdd8e49f4e705953029b
devel mode

• SOC with u-boot you must write every word to the Fuses

	NXP i.MX8M Series with HAB
host:~$ od -t x4 SRK_1_2_3_4_fuse.bin	0000000 9a842534 b0491ab4 d5b6a07b fd92dce7 0000020 c10dc87c d8bd04a9 704e9fe4 9b025359
burn the fuses	u-boot=> fuse prog 6 0 0x9a842534 u-boot=> fuse prog 6 1 0xb0491ab4 u-boot=> fuse prog 6 2 0xd5b6a07b u-boot=> fuse prog 6 3 0xfd92dce7 u-boot=> fuse prog 7 0 0xc10dc87c u-boot=> fuse prog 7 1 0xd8bd04a9 u-boot=> fuse prog 7 0 0x704e9fe4 u-boot=> fuse prog 7 0 0x9b025359
read and check the fuses	u-boot=> fuse read 6 0 4 0x00000000: 9a842534 b0491ab4 d5b6a07b fd92dce7 u-boot=> fuse read 7 0 4 0x00000000: c10dc87c d8bd04a9 704e9fe4 9b025359
reset the booard	u-boot=> reset
check the state	u-boot=> hab_status No Events Found!

5.2.3. Lock the device

Warning

This step is irreversible and could brick your device. Before closing the device:

• Verify you have built a signed bootloader image.

• Reset your board and verify there are no HAB.

• Verify the SRK eFuses have been burned correctly.

• NXP i.MX6 with HAB and bootloader barebox:

barebox$ hab -p -l
Device successfully locked down

The device is directly locked and the SRK is write protected, too.

• SOC with u-boot:

	NXP i.MX8M Series with HAB
Lock your device Secure Boot active	u-boot=> fuse prog 1 3 0x2000000
Set Read protection	not available
Set Over-ride protection for shadow register	not available
Set Write protection for SRK	u-boot=> fuse prog 0 0 0x200

5.3. Activate Secure Boot for TI K3 SOC

You can only burn the Fuses with the OTP-Keywriter, which you have create in the chapter Keys and Certificates Management To run the keywriter on your hardware we recommend starting with a regular SD card that has an unsigned image on it. Once you have your bootable SD card, copy the tiboot3.bin you generated into the boot partition of the SD card, replacing the previous version of the binary.

• AM62x

Now you must set JP8 on the development kit for AM62x in order to flash the keys.

Note

For some older AM62x boards you also need to verify that the resistor on J28 is set to position 2+3.

• AM64x

Now you must set JP5 to pins 1 and 2 on the development kit in order to flash the keys.

Once this jumper is set, plug the SD card into the kit and boot as you normally would. You should see a message that keywriting was successful. The keywriter will only successfully write one time.

If you are using the incremental approach to programming your keys, it is essential that you run your Key Revision binary after all the other binaries have been successfully run. Writing the key revision is what converts the device to a secure boot device, so you will not be able to run your other binaries after the key revision is set.

5.4. Next Steps after Activation of Secure Boot

Warning

After you have closed the device, consider the following points with regard to how firmware authentication can potentially be skipped:

• JTAG could be used to boot the processor and avoid the secure boot. See Secure JTAG

• The bootloader will drop to a console after an unsuccessful firmware authentication for debugging purposes. That console can still be used to boot, so it should be disabled in the production firmware. See Protection Shield Level

• please check the NXP and TI websides for more information

5.5. Key Revocation

• NXP SOC: You have four keys from which you can revoke until 3 keys.

• TI K3 SOC: You have 2 keys, a SMPK and BMPK (Backup Key)

5.5.1. Revoke NXP SRK Key

Although securing the device involves programming the hash of four public keys into the eFuses, only one key (number 1 by default) is used in the secure boot process. If the key gets compromised, it can be revoked and a different key used.

To use a different key for the signature of bootloader images, change the following variables in sources/meta-ampliphy/classes/secureboot.bbclass:

# for NXP with HABV4
BOOTLOADER_SIGN_IMG_PATH ??= "${CERT_PATH}/nxp_habv4_pki/crts/IMG1_1_sha256_4096_65537_v3_usr_crt.pem"
BOOTLOADER_SIGN_CSF_PATH ??= "${CERT_PATH}/nxp_habv4_pki/crts/CSF1_1_sha256_4096_65537_v3_usr_crt.pem"
BOOTLOADER_HABV4_SRK_INDEX ??= "0"

The following keys are available:

key Slot	IMG Certificate	CSF Certificate	SRK_REVOLE[2:0]
0	IMG1_1_sha256_4096_*	CSF1_1_sha256_4096_*	001
1	IMG2_1_sha256_4096_*	CSF2_1_sha256_4096_*	010
2	IMG3_1_sha256_4096_*	CSF3_1_sha256_4096_*	100
3	IMG4_1_sha256_4096_*	CSF4_1_sha256_4096_*	not revocable

Example for Revoke Key Slot 0 on NXP SOC with HABV4

barebox i.MX6, i.MX6UL	u-boot i.MX8M series
barebox$ mw -l -d /dev/imx-ocotp 0xBC 0x0001	u-boot=> fuse prog 9 3 0x1

Note

• The SRK Revocation does not modify the SRK hash values, only the SRK_REVOKE fuse has to be programmed.

• In a closed configuration, HAB, by default, sets the SRK_REVOKE_LOCK sticky bit in the OCOTP controller to write protect this eFuse field.

• To instruct HAB not to lock the SRK_REVOKE field, the CSF commands in the bootloader need to be reconfigured.

6. Kernel Module Signing

When the kernel module signing facility is enabled, Linux can enforce that only modules that have been signed with a specific key can be loaded. Keys with invalid signatures won’t be allowed to load. This makes it harder for attackers to load malicious or manipulated modules.

This is enforced by the kernel and does not require userland support.

6.1. Enable kernel module signing facility

To enable the kernel module signing facility, add the following DISTRO_FEATURE to your configuration file in conf/distro/xyz.conf

DISTRO_FEATURES += "kernelmodsign"

Warning

By default, the kernel modules will be signed with PHYTEC’s public, for example, the development key. Unless you create your own key, this feature does not offer any protection.

7. Device Tree Overlay and Secure Boot

Device Tree overlays are device tree fragments that can be merged into a device tree during boot time. These are for example hardware descriptions of an expansion board. They are instead of being added to the device tree as an extra include, now applied as an overlay. They also may only contain setting a node’s status depending on whether it is mounted or not.

7.1. Device Tree Overlay for i.MX6UL and i.MX6

Warning

The Device Tree Overlay support is generally deactivated and not supported for i.MX6UL and i.MX6 with Secure Boot in the security distro and image

The new ADIN1300 Ethernet PHY is supported in the standard BSP as devicetree overlay for the phyBOARD-Mira and phyBOARD-Nunki. In the security distro and image, a new device tree is created with the FIT-image recipes in the sources/meta-ampliphy/recipes-images/fitimages/ and the fdtapply mechanism from the source/meta-phytec/classes/fitimage.bbclass. More information in the chapter Linux Kernel in the FIT-Image In the barebox is an Ethernet PHY detection, which boots the correct configuration from the FIT-image.

7.2. Device Tree Overlay for the other NXP source

7.2.1. Build Time

The overlays set in the $KERNEL_DEVICETREE Yocto machine variable will be automatically added as a node to the signed FIT-Image.

Note

Only Device Tree Overlays in the FIT-Image can be used on the device.

7.2.2. Run Time

The ${overlays} variable can be either set directly in the U-Boot environment. Or be a part of the external bootenv.txt environment.

Warning

Manipulation Risk! The external bootenv.txt is not signed and protected against manipulation, so overlays can be changed and deleted in the bootenv.txt.

The ${overlays} variable loaded from the external environment will always overwrite the value from the environment saved directly in the flash. By default, the ${overlays} variable is not set directly in the U-Boot environment but comes from the external bootenv.txt environment file. It is also located in the boot partition of the SD card image.

Note

Please use Device Tree Overlay only in the development stage of your product. Create a final Device Tree for your device for the production phase.

7.2.3. Deactivate Device Tree Overlay Support

To disable the Device Tree Overlay support set the following variable in sources/meta-ampliphy/classes/secureboot.bbclass to true

FITIMAGE_NO_DTB_OVERLAYS ?= "true"

All the machine-defined Device Tree Overlays will be added to the FIT-Image. If you do not want Device Tree Overlays in the FIT-Image, please remove fdto in the sources/meta-ampliphy/recipes-image/fitimage/phytec-secureboot-ramdisk-fitimage.bb or in your own FIT-Image recipe.

FITIMAGE_SLOTS ?= "kernel fdt fdto ramdisk"

8. Secure Key Storage

A fundamental aspect of security is integrity and confidentiality. Many applications require an embedded device to keep sensitive data. The standard solution to this problem is to use encryption to protect the data and ensure that only authorized users have access to the encryption key. When a user interacts directly with a system, the encryption key can be protected with a password, pin code, or fingerprint that is provided by the user. However, many embedded devices work without user interaction, so this is not an option in those cases.

In the BSP, three different variants of Secure Key Storage can be implemented, depending on hardware support. The available hardware support is activated with MACHINE_FEATURE.

Type of Secure Key Storage	Hardware Support	MACHINE_FEATURE
NXP CAAM	* all NXP i.MX6, i.MX6UL * all i.MX8M series	caam
Trusted Execution Environment TEE	* all NXP i.MX SOC * all TI K3 SOC	optee
Trusted platform Module TPM	* on base boards for i.MX8M series * on phyGATE-Tauri-S / L	tpm

Machines built with the MACHINE_FEATURE have all necessary prerequisites enabled.

8.1. NXP i.MX CAAM

The NXP i.MX6, i.MX6UL and i.MX8M series processors include hardware encryption through NXP’s Cryptographic Accelerator and Assurance Module (CAAM, also known as SEC4). The CAAM combines functions to create a modular and scalable acceleration and assurance engine.

More information about the CAAM module can be found in the corresponding NXP reference Manual: i:MX Reference Manual

8.1.1. Prerequisites and Caveats

Secureboot is required for trusted CAAM Key blob functionality. If Secure Boot Keys are burned, the keys are locked. After a reset, the CAAM unit creates internal keys for the signing and encryption CAAM blobs. These keys are internal in the CAAM and can not be read out and overwritten.

8.1.2. Test and using

You can use the CAAM unit accelerator with the cryptodev driver.

target:~$ openssl rand -engine devcrypto -hex 30
target:~$ openssl ecparam -engine devcrypto -genkey -out eckey.pem -name prime256v1

8.2. Trusted Execution Environment: OP-TEE

OP-TEE is a Trusted Execution Environment (TEE) designed as a companion to a non-secure Linux kernel running on Arm; Cortex-A cores using the TrustZone technology.

OP-TEE is supported for the NXP i.MX8M series, NXP i.MX9 series and TI K3 SOC. This allows users who are interested in utilizing OP-TEE to use and test it on their devices.

Warning

If you want to use OP-TEE in production, then you must configure the complete isolation between the normal and secure TrustZone world. For more information

OP-TEE is divided into the following components:

• OP-TEE kernel: The kernel acts as a secure world OS. This kernel is signed by HABv4.

• tee-supplicant: Helper daemon allowing OP-TEE to read/write from/to secure storage. In practice, this means OP-TEE will save encrypted and authenticated data in the filesystem.

• xtest: Utilities to test OP-TEE.

8.2.1. Prerequisites and Caveats

• Secure Boot is required for OP-TEE to prevent a malicious OP-TEE kernel from loading.

• It is furthermore required to allow the generation of a hardware unique key that OP-TEE can use to derive a key for secure storage encryption and other use cases.

• Trusted Application Key-Pair: OP-TEE signs trusted applications in order to ensure their authenticity and integrity. By default, OP-TEE uses a pre-generated key, which you must replace with your own before using OP-TEE in production.

8.2.2. Testing OP-TEE

xtest

• When OP-TEE is enabled during the build, the “xtest” utility will be shipped.

• Executing “xtest” will run a couple of tests supplied by the OP-TEE project to ensure it is working as intended.

Memory Isolation: devmem2

• OP-TEE will load itself into a defined region in RAM. This region is reserved in Linux and does not attempt to allocate memory in this area.

• OP-TEE modifies the device tree of Linux during startup to ensure this.

• During runtime, the following nodes will be visible in the device tree:

target:~$ dtc -I dtb -O dts /proc/device-tree
reserved-memory {
      #address-cells = <0x02>;
      #size-cells = <0x02>;
      ranges;

      linux,cma {
            linux,cma-default;
            alloc-ranges = <0x00 0x40000000 0x00 0x40000000>;
            compatible = "shared-dma-pool";
            size = <0x00 0x28000000>;
            reusable;
      };

      optee_shm@0x57c00000 {
            reg = <0x00 0x57c00000 0x00 0x400000>;
            no-map;
      };

      optee_core@0x56000000 {
            reg = <0x00 0x56000000 0x00 0x1c00000>;
            no-map;
      };
};

• optee_core denotes the secure world memory region. It is not accessible, even to the Linux kernel. optee_shm is the shared region between the normal and secure world, allowing normal-world client applications to exchange data with OP-TEE-trusted applications.

• Memory access policy enforcement can be tested using the “devmem2” utility.

target:~$ devmem2 0x5600000

Memory mapped at address 0xffff88e2c000.
Bus error

target:~$ $?
135

target:~$ devmem2 0x57c00000
/dev/mem opened.
Memory mapped at address 0xffffb4f3c000.
Read at address  0x57C00000 (0xffffb4f3c000): 0xA0A28501

• In this example the 0x5600000 address is the optee_core region. Access is currently being blocked by the TZASC policy set up by OP-TEE, which causes a “Bus error”. The shared region, on the other hand, is accessible.

8.3. Trusted Platform Module (TPM) 2.0

The Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated microcontroller designed to secure hardware through integrated cryptographic keys. The TPM 2.0 is:

• specified from the Trusted Computing Group (TCG)

• TCG and Common Criteria (CC) certified EAL4+

• updateable for the Firmware

• available from different manufacturers

• used to create and store keys and certificates that can be used for filesystem encryption, device identification, and authentication

• a safe on the device, because the persistent keys are in the TPM and the key blobs can only be encrypted with the specific TPM

The Linux kernel has driver support for the TPM. TPM is the standard trusted key in the kernel keyring service. The middleware for the TPM is Open Source and supports OpenSSL, PKCS#11, and more. More information about the software stack for the TPM 2.0: A practical guide for using the TPM 2.0:

The TPM is not on the SOM, it is located on the carrier board.

8.3.1. Initialization of the TPM

The TPM 2.0 must be initialized at first with the command tss2_provision. This command is used in the tool physecurekeystorage-install, when you use the trustedtpm key type.

8.4. Kernel Key Retention Service for filesystem Encryption

“The Linux key-management facility is primarily a way for various kernel components to retain or cache security data, authentication keys, encryption keys, and other data in the kernel.” Linux kernel is a kernels facility for “password caching”, which stores them in a computers memory (RAM) during an active users/system session. The Linux keyring accessing is via syscalls from the user space into the kernel space. Applications to access are keyctl, systemd-ask-password and others.

The documentation about the Kernel Key Retention service can be found at https://www.kernel.org/doc/html/latest/security/keys/core.html The following description and implementation are based on the https://www.kernel.org/doc/html/latest/security/keys/trusted-encrypted.html

• The kernel standard trusted key types are trusted tpm, trusted tee and trusted caam. The encrypted blobs are stored in the file trusted_key.blob in the first boot partition and in the third partition with name config.

• The secure caam is only supported in the NXP vendor based BSP and used the black key blob mechanism and used the kernel key type logon. The encrypted blobs are stored in the file tksecure_key.

The following table list the supported key types for the different SOC`s.

Key Type	depend on the MACHINE_FEATURE	NXP i.MX6 (UL)	NXP i.MX8M MNP	TI AM6 Series
trustedtpm	tpm2	x	x	x
trustedtee	optee	x	x	x
trustedcaam	caam	x (not ULL)	x
securecaam	caam		x

8.4.1. Secure Key Storage Initialization with phySecureKeyStorage Tool

The tool physecurekeystorage-install is part of the ramdisk userspace of phytec-provisioning-initramfs and included in the meta-ampliphy layer of the PHYTEC Standard BSP.

The physecurekeystorage-install tool can initialize all supported secure key storages of your machine, but always only one can be active. For example, the phyBOARD-Polis-imx8mm supports Trusted TEE, Trusted TPM, Trusted CAAM and Secure CAAM, but initialized is only Trusted TPM.

target:~$ physecurekeystorage-install -h

PHYTEC Install Script v1.7 for Secure Key Storage

Usage:  physecurekeystorage-install [PARAMETER] [ACTION]

Example:
   physecurekeystorage-install --newkeystorage trustedtpm
   physecurekeystorage-install --deletekeystorage
   physecurekeystorage-install --loadkeystorage
   physecurekeystorage-install --pkcs11testkey

One of the following action can be selected:
   -n | --newkeystorage <value>  Create new Secure Key Storage
                           trustedcaam (only NXP controller)
                           trustedtee
                           trustedtpm
                           securecaam (black blob only NXP Vendor BSP)
   -d | --deletekeystorage Erase the existing Secure Key Storage
   -l | --loadkeystorage   Load the existing Secure Key Storage
   -p | --pkcs11testkey    Create an ECC testkey with user pin 1234
   -h | --help             This Help
   -v | --version          The version of physecurekeystorage-install

8.5. Cryptographic Token Interface PKCS#11

Also known as “Cryptoki”. PKCS#11 specifies a number of standard calls to relay cryptographic requests (such as a signing operation) to a third party module. Such a module may be a TPM or OP-TEE, it is a software PKCS#11 trusted application that appears to the userland as one.

The library or pkcs11-module-path for PKCS#11 depend on the device: * TPM 2.0: /usr/lib/libtpm2_pkcs11.so.0 * OP-TEE: /usr/lib/libckteec.so.0 * SmartCards: /usr/lib/opensc-pkcs11.so

The following provider.conf is for the usage with openssl 3.0 and a TPM 2.0. Please set the pkcs11-module-path to your selected Secure key storage.

openssl_conf = openssl_init

[openssl_init]
providers = provider_sect

[provider_sect]
default = default_sect
pkcs11 = pkcs11_sect

[default_sect]
activate = 1

[pkcs11_sect]
module = /usr/lib/ossl-modules/pkcs11.so
pkcs11-module-path = /usr/lib/pkcs11/libtpm2_pkcs11.so
activate = 1

If the TPM 2.0 is initialized e.g. with the tool physecurekeystorage, then you can create a device certificate.

#set TPM Pin
target:~$ TPM_PIN=1234
# Create self-signed certificate
target:~$ OPENSSL_CONF=provider.cnf openssl req -new -x509 -provider tpm2 -days 100 -subj '/CN=my_key/' -key "pkcs11:model=SLB9670;manufacturer=Infineon;token=test;object=test-keypair;type=private;pin-value=${TPM_PIN}" -out ecc.crt
# Write Device Cert to TPM
target:~$  pkcs11-tool --module /usr/lib/pkcs11/libtpm2_pkcs11.so -w ecc.crt -y cert -a iotdm-cert --pin ${TPM_PIN} -d 2

Note

For device identification on a server or cloud provider, you need a Certificate Authority to sign the device certificate.

• You can find a more detailed example with Op-tee https://optee.readthedocs.io/en/latest/building/userland_integration.html

• Examples with openssl for the TPM 2.0: https://github.com/tpm2-software/tpm2-tss-engine

OpenSSL is a robust, commercial-grade, full-featured software library for general-purpose cryptography and secure communication.

9. Secure Storage

Secure storage is a combination of the authenticated and encrypted filesystem that adds another layer of security to your product. It uses the kernel’s cryptographic support to encrypt all the data you store in the root filesystem. Attempting to access this data without the correct encryption key returns random, meaningless bytes.

The default implementation of secure storage in the PHYTEC BSP is the root filesystem encryption with integrity support:

This manual describes the integrity or/and encryption of the complete root filesystem. Note that on-the-fly encryption and decryption do introduce a small performance penalty in read and write speeds.

Alternatives for the complete root filesystem with integrity and encryption are:

• Partition encryption: To protect some sensitive files but not pay the cost of encrypting the complete rootfs, you can keep the rootfs partition authenticated unencrypted and set up a specific authenticated encrypted partition where the sensitive files will be stored.

• File-specific encryption: Only separate folders and files will be encrypted.

Note

• ampliphy-secure is an example of how integrity and encryption on embedded devices work. It uses encryption with integrity for a complete partition on eMMC.

• Encrypting the entire root partition should be considered. However, this can only be done on the device.

• An integrity check with dm-integrity is a highly recommended addition to the filesystem encryption.

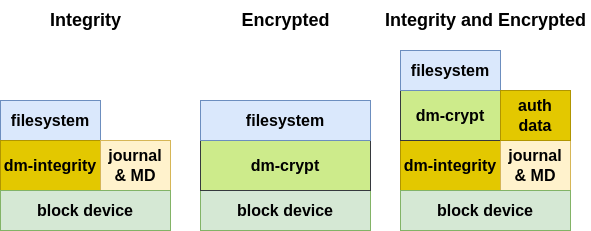

9.1. Filesystem with Integrity vs Authenticated filesystem

The actual standard BSP includes integrity support with hash sha-256, which has protection against data error. An authenticated file system should use HMAC with signed hashes, which have protection against device-turned-off data manipulation from attackers. For this variant, an additional symmetric key is necessary.

9.2. Requirements for Filesystem Encryption

• File integrity and encryption support for block devices (SD card, eMMC) or MTD device (NAND, NOR)

• Secure Key Storage to securely store the authentication and encryption key

• Secure Boot must be activated and the device must be locked for proper secure key storage.

• A user login should be activated for access control on runtime.

9.3. Boot Process Flow

• bootloader verifies FIT-Image with linux-kernel image, device tree, and ramdisk before they are executed

• Linux kernel executes the ramdisk (read-only filesystem)

• The bootscript loads the authenticated encrypted filesystem encryption key with the CAAM, TEE or TPM unit in the RAM and encrypts the filesystem. After the encryption, the root filesystem will be switched and the boot process continues.

9.4. Starting the Build Process

Filesystem integrity and encryption are included in the DISTRO_FEATURE secureboot and securestorage.

You can choose in the sources/meta-ampliphy/conf/distro/common-secure.inc between

• fileauthorenc: use integrity or encrypted filesystem

• fileauthandenc: use integrity and encrypted filesystem

This configuration is important for the RAUC update system because the use of integrity and encrypted filesystem are stacked and the number of device-mappers is doubled to use integrity or encrypted filesystem.

DISTRO_FEATURES += "securestorage"
#possible types: fileauthorenc , fileauthandenc
SECURE_STORAGE_TYPE = "fileauthandenc"
OVERRIDES_append = ":securestorage:${SECURE_STORAGE_TYPE}"

This configuration changes the rauc system.conf configuration in the rootfs image for the target, too. The device change from the /dev/mtdblockX to the device mapper /dev/dm-x. With this changes the integrity and the encryption are retained during an update.

9.5. Setup Secure Storage on your Device

The filesystem encryption ensures the target has a unique key or an equal key per device.

The filesystem encryption process flow:

• The filesystem encryption key is generated and stored encrypted with CAAM, TEE, or TPM.

• Encryption is initialized.

• The partition is formatted.

• Data is copied to the encrypted partition.

9.5.1. First Boot

From a high-level point of view, an eMMC device is like an SD card. Therefore, it is possible to flash the image phytec-provisioning-image from the Yocto build system directly to the SD card. The image contains the signed bootloader and signed FIT-Image with an initramfs.

If your filesystem is not initialized, is damaged, or the key blob is deleted, then you can reinstall the encrypted filesystem with the following instructions.

• Boot the phytec-provisioning-image from the SD card or load the provisioning fitImage with tftp to the memory in the bootloader

• The device stops with the following message because there is no encrypted key stored in the folder /secrets:

The default user is root with the password root:

Note

If there is no login in 60s, then the system goes to power off

Login timed out after 60 second
[ERROR] Key and Filesystem Initialization
The system will poweroff in 10 seconds
reboot: Power down

• If this is your first boot from the device and no image is on the eMMC, please flash an image to the eMMC.

9.5.2. Key Generation for Secure Storage

Please follow the instructions in the chapter Secure Key Storage Initialization with phySecureKeyStorage Tool

9.5.3. Secure Storage Initialization with phySecureStorage tool

The tool physecurestorage-install is part of the initramfs userspace.

The physecurestorage-install tool can initialize the filesystem with encryption, integrity, or both methods together.

target:~$ physecurestorage-install -h

PHYTEC Install Script v1.5 for Secure Storage

Usage:  physecurestorage-install [PARAMETER] [ACTION]

Example:
physecurestorage-install --flashpath /dev/mmcblk0
--filesystem /media/phytec-security-image.ext4
--flashlayout 5,6
--newsecurestorage intenc

One of the following action can be selected:
   -n | --newsecurestorage <value>   Create new Secure Storage of type
                           int     Root File System with integrity
                           enc     Encrypted root file system
                           intenc  Encrypted root file system with integrity
   -h | --help             This Help
   -v | --version          The version of the physecurestorage-install

The following PARAMETER must be set for new Secure Storage:
   -p | --flashpath <flash device>
   -s | --filesystem <path to root as tgz or ext4>
   -l | --flashlayout <value>    partition number for the rootfs partitions
                        5,6       rootfs partitions are 5 and 6
   -L | --labelname <value>      label name for the partition

• The parameter <flashpath> is the eMMC device.

• The parameter <filesystem> is the path to tar.gz archive of the filesystem, which should be installed on the flash device.

• Please copy the filesystem image, <IMAGENAME>-<MACHINE>.tar.gz, to a USB or MMC drive so that it can be installed on the target. If partup packages are used for initial flashing, then mount the partup package as type squashfs first and find the root filesystem there.

• The parameter <flashlayout> contains the rootfs partition.

• The parameter RAUC initializes both RAUC rootfs partitions.

• After the installation, power off the system:

kernel$ poweroff -f

• Restart the system. After a successful installation, the system will boot to

• the kernel login console.

9.5.4. Recover an Initialized Device

If your filesystem is damaged or the key blob is deleted, then you can reinstall the encrypted filesystem with the following options.

1. Reinitialize your device with the phytec-provisioning-image from the SD card (Boot in ramdisk)

2. Boot in rescue mode of the existing flash image with minimal tools support

The following commands are for starting the rescue mode with a booted device from eMMC:

• Stop booting in the bootloader. The Protection Shield Level low is in default with password: root

• Add Linux bootargs in the bootloader and boot the fitImage from the eMMC:

  • for barebox (i.MX6 and i.MX6UL)

  barebox$ global linux.bootargs.rescue="rescue=1"
  barebox$ boot


  • for u-boot:

  u-boot=> run loadraucimage
  u-boot=> run raucargs
  u-boot=> setenv bootargs ${bootargs} rescue=1
  u-boot=> bootm ${loadaddr}


10. Hardening of the System

The DISTRO_FEATURE hardening activates the kernel reduction with deselect fragments. The name of the deselection variable is KERNEL_FEATURES_DESELECT.

The deselect fragment selection for bluetooth, can, optee, pci and wifi depend on MACHINE_FEATURES with the same name. If these features are not set in MACHINE_FEATURES, then the deselect fragment with the same name is active, but can be selected independently from the MACHINE_FEATURE too. The fragments debug, kvm, media and xen are selected by default and are independent from the machine feature.

Overwriting the initial definition of the variable KERNEL_FEATURES_DESELECT is possible.

Kernel Fragment	Description	Selection with KERNEL_FEATURES _DESELECT	Selection with MACHINE_FEATURE
hardening.cfg	Activate some hardening features in the kernel. This fragment is the default active with the distro feature hardening.	NO	NO
deselect- bluetooth.cfg	Disable the Bluetooth support.	yes	yes
deselect- can.cfg	Disable the CAN support.	yes	yes
deselect- debug.cfg	Disable kernel debug support.	yes initial set	no
deselect- kvm.cfg	Disable kernel-based virtual machine support.	yes initial set	no
deselect- media.cfg	Disable the ANALOG / DIGITAL TV, RADIO and SDR support	yes initial set	no
deselect- optee.cfg	Disable optee support.	yes	yes
deselect- pci.cfg	Disable PCI interface support.	yes	yes
deselect- wifi.cfg	Disable wireless and WLAN support	yes	yes
deselect- xen.cfg	Disable xen paravirtualisation	yes initial set	no

11. Physical security

To further protect your device, it is important to reduce attack vectors. Start by securing development features like JTAG and serial downloader. For activation or deactivation of controller features, is necessary to write and read eFuses.

Warning

The secure eFuse configuration can only be written once and is irreversible.

11.1. Secure JTAG

Most embedded devices provide a JTAG interface for debugging purposes. However, if left unprotected, this interface can become an important attack vector on the systems in series production. The most controllers allows you to regulate JTAG access with three security modes using OTP (One Time Programmable) eFuses:

Mode	Security level	Description	NXP SOC	TI SOC
Enabled	low	This is the default mode of operation and you have full access to JTAG.	yes	yes
Disabled debugging	medium	This mode disables debugging but leaves the boundary scan functionality enabled.	yes
Secure	high	This mode provides high security. JTAG use is regulated by a challenge response authentication mechanism	Secret response key	X509 certifi- cate
Disabled	high	This mode provides maximum security. All security-sensitive JTAG features are permanently blocked, preventing any debugging.	yes	yes

The NXP Soc support different authentication depend on the SoC or the state of the SoC

• NXP i.MX6/UL/ULL and NXP i.MX8M MNP: Secret response key is supported and can be activate independent of the lifecycle

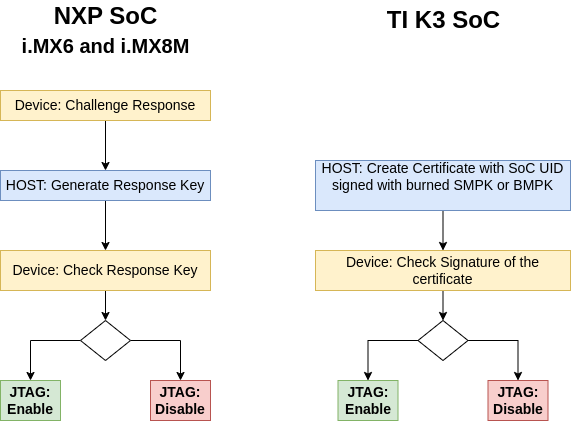

The Secure Debug Mechanism with authentication differs between NXP and TI.

Note

The i.MX9 family supports additionally the asymmetric signed message based debug enablement, which has better security compared to the password based mechanism (Secret response key). Secure debug can only be enabled when the device is in OEM_CLOSED lifecycle. In this life cycle, only authenticated debug is allowed.

Additional information about JTAG Security can be found:

• NXP: Secure Debug in i.MX6/7/8M Family of Application Processors AN4686

• TI: Secure Debug User Guide or in the restricted security resources for your SoC type.

11.1.1. Disable Debugging Mode only for NXP SoC

Set JTAG to “Disabled debugging” mode:

• i.MX6 and i.MX6UL/ULL with barebox:

  barebox$  mw -l -d /dev/imx-ocotp 0x18 0xC00000


• i.MX8M MNP with u-boot:

  u-boot=> fuse prog 1 3 0xC00000


11.1.2. Disable JTAG Mode

Note

only for NXP i.MX6 family and NXP i.MX8M MNP:

The HAB can normally enable JTAG debugging with the HAB_JDE-bit in the OCOTP SCS register. The JTAG_HEO-bit can override this behavior. If this feature is not required, it is highly recommended this be disabled.

• NXP i.MX6 and i.MX6UL/ULL with barebox:

  # Disable JTAG Mode
  barebox$  mw -l -d /dev/imx-ocotp 0x18 0x00100000
  # To prevent HAB from Enabling JTAG
  barebox$  mw -l -d /dev/imx-ocotp 0x18 0x08000000


• NXP i.MX8M MNP with u-boot:

  # Disable JTAG Mode
  u-boot=> fuse prog 1 3 0x200000
  # To prevent HAB from Enabling JTAG
  u-boot=> fuse prog 1 3 0x4000000


11.2. Disable Serial Downloader

Disabling the serial download support is recommended for security-enabled configurations:

• NXP i.MX6 with barebox:

  # Disable only Read Access for SDP
  barebox$ mw -l -d /dev/imx-ocotp 0x18 0x0004
  # Disable SDP Mode Completely
  barebox$ mw -l -d /dev/imx-ocotp 0x18 0x0001


• NXP i.MX6UL/ULL with barebox:

  # Disable only Read Access for SDP
  barebox$ mw -l -d /dev/imx-ocotp 0x18 0x40000
  # Disable SDP Mode Completely
  barebox$ mw -l -d /dev/imx-ocotp 0x18 0x20000


• NXP i.MX8M MNP with u-boot:

  # Disable SDP Mode Completely
  u-boot=> fuse prog 2 0 0x200000


11.3. Force Internal Boot

Ensure the device always boots in INTERNAL BOOT (FORCE_BT_FROM_FUSE) mode, ignoring BOOT_MODE pins. This setting is recommended for security-enabled configurations.

At first you should burn the Boot Fuses.

• NXP i.MX6 with barebox:

  barebox$  mw -l -d /dev/imx-ocotp 0x18 0x80000000


• NXP i.MX6UL/ULL with barebox:

  barebox$  mw -l -d /dev/imx-ocotp 0x18 0x10000


• NXP i.MX8M MNP with u-boot:

  u-boot=> fuse prog 2 0 0x100000


11.4. Disable Boot from External Memory

By writing to the DIR_BT_DIS FUSE, we can disable boot from external memory.

• NXP i.MX6 and i.MX6UL/ULL with barebox:

  barebox$ mw -l -d /dev/imx-ocotp 0x18 0x0008


• NXP i.MX8M MNP with u-boot:

  u-boot=> fuse prog 1 3 0x8000000


12. Keys and Certificates Management

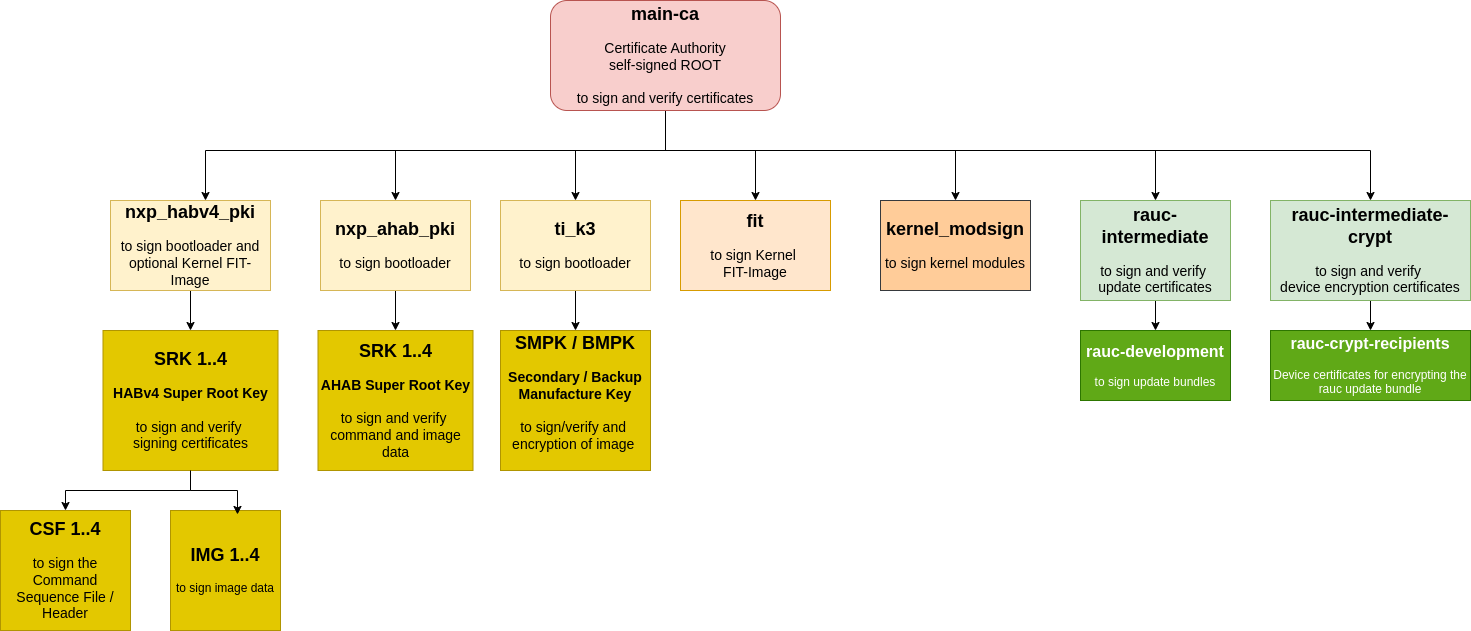

12.1. Public Key Infrastructure Tree (PKI tree)

To use a secure boot with a signed bootloader and a signed kernel image, several keys and certificates are required to sign the images. The key and certificate creation is a manual process and the public key infrastructure (PKI) tree must be in place before you start your build. This BSP includes the PHYTECD development pki-tree as an example. You are obligated to create your own pki-tree with your own keys and certificates.

Note

It is highly recommended to use different keys for different parts of your system to avoid a single point of failure regarding your security concept.

12.2. PHYTEC Development Keys (phytec-dev-ca)

The included phytec-dev-ca example consists of a self-signed main-ca and three derived sub-ca’s for bootloader, Fit-Image, and RAUC updates.

The recipes for Bootloader, FIT-Image, and RAUC depend on the recipe phytec-dev-ca. If you build the BSP for the first time, the PHYTEC development keys are downloaded from https://github.com/phytec/phytec-dev-ca to yocto/phytec-dev-ca. They are used to sign the Bootloader, FIT-Image, Kernel modules, and the RAUC bundles.

Name	Description	Key Type
main-ca	self-signed Certificate authority	RSA-4096
nxp_ahab_pki	NXP HABv4 Key Authority for i.MX93	NIST P-521
nxp_habv4_pki	NXP HABv4 Key Authority for i.MX6/UL/ULL and i.MX8M Nano/Mini/Plus	RSA-4096
ti_k3	TI K3 Key Authority for AM62 / AM64 / AM68	RSA-4096
fit	Kernel FIT-Image signing key and certificate	RSA-4096
kernel-modsign	Key for the Linux kernel module signing facility, independent of CA	RSA-4096
rauc-intermediate	RAUC ca (intermediate ca) and RAUC ca sign development key for signing the bundles	RSA-2048
rauc-intermediate -crypt	RAUC ca for device certificates to encrypt update bundles	RSA-4096

The SOC specific nxp_ahab_pki, nxp_habv4_pki and ti_k3 are for signing the boot container files, which are verified with the SOC internal unit and SOC rom loader or dedicated controllers in the SOC.

All keys and certificates are stored in an XCA database phytec-dev-ca.xdb, which can be configured with the open-source application XCA from https://hohnstaedt.de/xca/. The password for the phytec-dev-ca.xdb is: phytec-dev-ca

Only the necessary keys and certificates for the build process are exported to the directory.

The phytec-dev-ca is installed in the directory
/<path to>/yocto
|--build
|--phytec-dev-ca
|--source

All keys and certificates are in an XCA database and are not copied to different paths from the packages in the build folder. The directory contains only the necessary certificates and keys for the building process.

Warning

• Use the PHYTEC development keys only for the first test.

• The PHYTEC development keys are not secure!

• Create and use your own keys and certificates!

12.3. Create Your Own PKI Tree

Please create your PKI offline with a separate system. For example, boot a read-only system from USB which you only use to create the PKI. The phytec-dev-ca is created with XCA from https://hohnstaedt.de/xca/ , but you can use any other tool, too.

12.3.1. Change PKI-Tree from phytec-dev-ca to Your Own PKI

In the configuration class sources/meta-ampliphy/classes/secureboot.bbclass, the path to your PKI tree is initially defined:

CERT_PATH ??= "${OEROOT}/../../phytec-dev-ca"

If you want to change the path, then reinit the CERT_PATH ?= in your layer or overwrite the CERT_PATH in the conf/local.conf

The name of your PKI tree must have a name other than phytec-dev-ca. The recipe for phytec-dev-ca uses the name “phytec-dev-ca” as a parameter for the clean command.

After the CERT_PATH has been changed, you must clean and rebuild the bootloader, FIT-Image, RAUC bundles, and the rootfs!

12.4. Create NXP AHAB / HABV4 Keys

NXP provided scripts to create keys and certificates for NXP AHAB or NXP HABV4. The scripts are from the imx-code-signing-tool repository

You can use this script or a PKI application like the XCA to create the keys and certificates to sign the bootloader or boot container.

For creation, the SRK table and SRK Fuses from the SRK certificates are scripts in the imx-code-signing-tool repository in the folder add-ons which used the srktool. You can install the srktool with

host:~$ apt install imx-code-signing-tool
# or build from source
host:~$ make -C code/obj.linux64 OSTYPE=linux64 ENCRYPTION=yes

More information about cst and HAB4 API you can find in the doc folder of the imx-code-signing-tool repository.

12.5. Create TI K3 keys

12.5.1. Installing the SDK

To create a copy of the OTP Keywriter that includes your own keys, you will need TI’s MCU Plus SDK, CCS, SYSCONFIG, and the OTP keywriter source code.

For the TI AM62x

• MCU Plus SDK for AM62x (09.01.00.39): https://www.ti.com/tool/download/MCU-PLUS-SDK-AM62X/09.01.00.39

• CCS (12.2.0): https://www.ti.com/tool/download/CCSTUDIO/12.2.0

• SYSCONFIG (1.15): https://www.ti.com/tool/download/SYSCONFIG/1.15.0.2826

• Keywriter source code must be requested from the AM62X-RESTRICTED-SW section of the AM62x downloads page: https://www.ti.com/tool/PROCESSOR-SDK-AM62X

For the TI AM64x

• MCU Plus SDK for AM64x (09.00.00.35): https://www.ti.com/tool/download/MCU-PLUS-SDK-AM64X/09.00.00.35

• CCS (12.4.0): https://www.ti.com/tool/download/CCSTUDIO/12.4.0

• SYSCONFIG (1.17): https://www.ti.com/tool/download/SYSCONFIG/1.17.0.3128

• Keywriter source code must be requested from the Request more information section of the AM64x product page: https://www.ti.com/product/AM6442

• Use keywriter v09x

Note

Building the keywriter has only been tested with version 09.01.00.39 (AM62x) and 09.00.00.35 (AM64x) of the MCU Plus SDK and may not work with other versions.

Once you have the MCU Plus SDK set up, install the keywriter source to <MCU_PLUS_SDK_DIRECTORY>/source/security.

Before we begin programming keys, we need to make one change to the source code.

• AM62x: In <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am62x-sk/r5fss0-0_nortos/main.c remove line 57:

• AM64x: In <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am64x-evm/r5fss0-0_nortos/main.c remove line 61:

-    keywriter_setVpp();

This is because there is a pin on the SoC that needs to be set high to write keys, and TI does this using I2C on their boards which requires this function to run. We will set this pin using a jumper on our board.

12.5.2. Generating keys

The keywriter source comes with a tool to help generate your own keys. To generate keys, go to

• AM62x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am62x

• am64x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am64x

and run

host:~$ ./gen_keywr_cert.sh -g

This will create a set of five keys in the keys/ directory. You can use the keywriter to flash these keys to your hardware and you will need to keep them safe to use for signing your images as well.

12.5.3. Building the Keywriter

There are two methods for creating the keywriter. You can create one keywriter that contains all of your keys, or you can make one keywriter per key. The all at once approach is more straightforward, but if your key certificates end up too large you may need to use the incremental approach.

12.5.3.1. All at Once

Using the keys generated in the previous step, we can now generate a keywriter to sign our hardware and enable secure boot. Go to

• AM62x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am62x

• AM64x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am64x

and run the following:

host:~$ ./gen_keywr_cert.sh -t tifek/ti_fek_public.pem --msv 0xC0FFE -s keys_devel/smpk.pem --smek keys_devel/smek.key --keycnt 1 --keyrev 1

Note

If necessary you can write protect these fields using --msv-wp -s-wp --smek-wp --keycnt-wp and --keyrev-wp, but this should only be done if necessary.

This generates a certificate containing our keys (primary_cert.bin). We have left out the bmek and bmpk for now because with them included the certificate would exceed the 5400 byte limit. These are backup keys and are completely optional.

To generate the binary itself, run the following commands, starting from the

• AM62x <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am62x

• AM64x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am64x

directory where we left off:

host:~$  cd ../../x509cert
host:~$  python3 ../../../../../tools/bin2c/bin2c.py final_certificate.bin keycert.h KEYCERT
#--------------------
# AM62x
host:~$  cd ../../am62x-sk/r5fss0-0_nortos/ti-arm-clang/
# AM64x
host:~$ cd ../../am64x-evm/r5fss0-0_nortos/ti-arm-clang/
#--------------------
host:~$  make -sj PROFILE=debug clean
host:~$  make -sj PROFILE=debug

The keywriter has now been built and is the tiboot3.bin file in

• AM62x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am62x-sk/r5fss0-0_nortos/ti-arm-clang

• AM64x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am64x-evm/r5fss0-0_nortos/ti-arm-clang

12.5.3.2. Incremental

If you end up with a certificate exceeding 5400 bytes while trying to build and program all the keys at once, you may need to flash the keys incrementally. To do this you will need separate certificates for each key. Starting in

• AM62x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am62x,

• AM64x: <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/scripts/cert_gen/am64x,

generate the first keywriter for the Model Specific Value (MSV):

MSV

host:~$  ./gen_keywr_cert.sh --msv 0xC0FFE -t tifek/ti_fek_public.pem
host:~$  cd ../../x509cert
host:~$  python3 ../../../../../tools/bin2c/bin2c.py final_certificate.bin keycert.h KEYCERT
#--------------------
# AM62x
host:~$  cd ../../am62x-sk/r5fss0-0_nortos/ti-arm-clang/
# AM64x
host:~$  cd ../../am64x-evm/r5fss0-0_nortos/ti-arm-clang/
#--------------------
host:~$  make -sj PROFILE=debug clean
host:~$  make -sj PROFILE=debug

Note

To write protect the MSV, use --msv-wp while generating the certificate in the first command. This is optional and should only be done if necessary.

The keywriter for the MSV has now been built and is the

• AM62x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am62x-sk/r5fss0-0_nortos/ti-arm-clang.

• AM64x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am64x-evm/r5fss0-0_nortos/ti-arm-clang.

Save it elsewhere so that we can build the other keywriters without overwriting this one. Make sure that you keep track of the binaries so that you can flash them in the correct order later.

To get back to the starting directory,

host:~$  cd ../../../scripts/cert_gen/am62x/

Next we will generate the keywriter for the key count:

Key Count

host:~$  ./gen_keywr_cert.sh -t tifek/ti_fek_public.pem --keycnt 1
host:~$  cd ../../x509cert
host:~$  python3 ../../../../../tools/bin2c/bin2c.py final_certificate.bin keycert.h KEYCERT
#--------------------
# AM62x
host:~$  cd ../../am62x-sk/r5fss0-0_nortos/ti-arm-clang/
# AM64x
host:~$  cd ../../am64x-evm/r5fss0-0_nortos/ti-arm-clang/
#--------------------
host:~$  make -sj PROFILE=debug clean
host:~$  make -sj PROFILE=debug

Note

When writing keys incrementally it is important to not write protect the key count. This would prevent us from being able to write the key revision.

The keywriter for the key count has now been built and is the

• AM62x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am62x-sk/r5fss0-0_nortos/ti-arm-clang.

• AM64x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am64x-evm/r5fss0-0_nortos/ti-arm-clang.

Save it elsewhere so that we can build the other keywriters without overwriting this one. Make sure that you keep track of the binaries so that you can flash them in the correct order later.

To get back to the starting directory,

#--------------------
# AM62x
host:~$  cd ../../../scripts/cert_gen/am62x/
# AM64x
host:~$  cd ../../am64x-evm/r5fss0-0_nortos/ti-arm-clang/
#--------------------

Finally we can generate the keywriter for the key revision:

Key Revision

host:~$  ./gen_keywr_cert.sh -t tifek/ti_fek_public.pem --keyrev 1
host:~$  cd ../../x509cert
host:~$  python3 ../../../../../tools/bin2c/bin2c.py final_certificate.bin keycert.h KEYCERT
#--------------------
# AM62x
host:~$  cd ../../am62x-sk/r5fss0-0_nortos/ti-arm-clang/
# AM64x
host:~$  cd ../../am64x-evm/r5fss0-0_nortos/ti-arm-clang/
#--------------------
host:~$  make -sj PROFILE=debug clean
host:~$  make -sj PROFILE=debug

Note

To write protect the key revision, use --keyrev-wp while generating the certificate in the first command. This is optional and should only be done if necessary.

The keywriter for the key count has now been built and is the

• AM62x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am62x-sk/r5fss0-0_nortos/ti-arm-clang.

• AM64x: tiboot3.bin file in <MCU_PLUS_SDK_DIRECTORY>/source/security/sbl_keywriter/am64x-evm/r5fss0-0_nortos/ti-arm-clang.

Make sure that you keep track of the binaries so that you can flash them in the correct order later.

12.6. Create Kernel FIT-Image key

You can create the Kernel FIT-Image Key with a PKI Tool or openssl.

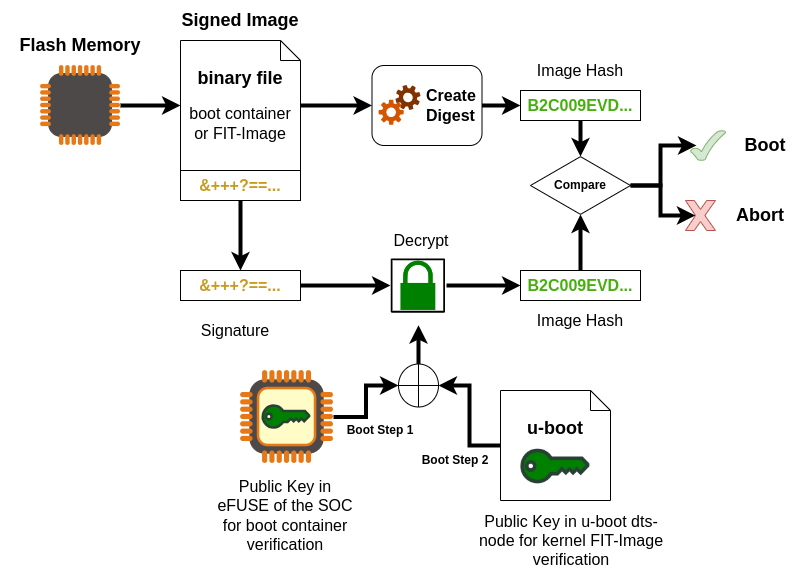

For the signing of the Kernel FIT-Image the private key is used. The public key is build into as device-tree node in the bootloader and used for the FIT-Image verification.

The certificate is not necessary for the signing and verification of the FIT-Image.

12.7. Create Kernel Module Signing key

You can create the Key and certificate for kernel module signing with a PKI tool or openssl. You must combine the private key and the certificate to one file.

host:~$ cat private.key certificate.pem > kernel_modsign.pem

12.8. Create rauc update certificates

You can create the Key and certificate for rauc with a PKI tool or openssl. More details on the rauc documentation
