Documentation in pdf format: Download
i.MX 93 BSP Manual |
|
Document Title |
i.MX 93 BSP Manual |
Document Type |
BSP Manual |
Yocto Manual |
Mickledore |
Release Date |
2024/01/31 |
Is Branch of |
i.MX 93 BSP Manual |
The table below shows the Compatible BSPs for this manual:
Compatible BSPs |
BSP Release Type |
BSP Release Date |
BSP Status |
|---|---|---|---|
BSP-Yocto-NXP-i.MX93-PD24.1.1 |
Minor |
2024/05/07 |
Released |
This BSP manual guides you through the installation and creation steps for the Board Support Package (BSP) and describes how to handle the interfaces for the phyBOARD-Segin i.MX 93 and phyBOARD-Nash i.MX 93 Kit. Furthermore, this document describes how to create BSP images from the source code. This is useful for those who need to change the default image and need a way to implement these changes in a simple and reproducible way. Further, some sections of this manual require executing commands on a personal computer (host). Any and all of these commands are assumed to be executed on a Linux Operating System.
Note
This document contains code examples that describe the communication with the board over the serial shell. The code examples lines begin with “host:~$”, “target:~$” or “u-boot=>”. This describes where the commands are to be executed. Only after these keywords must the actual command be copied.
1. PHYTEC Documentation
PHYTEC provides a variety of hardware and software documentation for all of our products. This includes any or all of the following:
QS Guide: A short guide on how to set up and boot a phyCORE board along with brief informationon building a BSP, the device tree, and accessing peripherals.
Hardware Manual: A detailed description of the System on Module and accompanying carrierboard.
Yocto Guide: A comprehensive guide for the Yocto version the phyCORE uses. This guide contains an overview of Yocto; introducing, installing, and customizing the PHYTEC BSP; how to work with programs like Poky and Bitbake; and much more.
BSP Manual: A manual specific to the BSP version of the phyCORE. Information such as how to build the BSP, booting, updating software, device tree, and accessing peripherals can be found here.
Development Environment Guide: This guide shows how to work with the Virtual Machine (VM) Host PHYTEC has developed and prepared to run various Development Environments. There are detailed step-by-step instructions for Eclipse and Qt Creator, which are included in the VM. There are instructions for running demo projects for these programs on a phyCORE product as well. Information on how to build a Linux host PC yourself is also a part of this guide.
Pin Muxing Table: phyCORE SOMs have an accompanying pin table (in Excel format). This table will show the complete default signal path, from the processor to the carrier board. The default device tree muxing option will also be included. This gives a developer all the information needed in one location to make muxing changes and design options when developing a specialized carrier board or adapting a PHYTEC phyCORE SOM to an application.
On top of these standard manuals and guides, PHYTEC will also provide Product Change Notifications, Application Notes, and Technical Notes. These will be done on a case-by-case basis. Most of the documentation can be found on the https://www.phytec.de/produkte/system-on-modules/phycore-imx-91-93/#downloads of our product.
1.1. Supported Hardware
On our web page, you can see all supported Machines with the available Article Numbers for this release: BSP-Yocto-NXP-i.MX93-PD24.1.1, see download.
If you choose a specific Machine Name in the section Supported Machines, you can see which Article Numbers are available under this machine and also a short description of the hardware information. In case you only have the Article Number of your hardware, you can leave the Machine Name drop-down menu empty and only choose your Article Number. Now it should show you the necessary Machine Name for your specific hardware.
Tip
Console examples in this BSP manual only focus on phyBOARD-Segin i.MX 93. Similar commands can also be executed for/on phyBOARD-Nash i.MX 93
1.1.1. phyBOARD-Segin i.MX 93 Components
phyBOARD-Segin i.MX 93 Components (top)
phyBOARD-Segin i.MX 93 Components (bottom)
1.1.2. phyBOARD-Nash i.MX 93 Components
phyBOARD-Nash i.MX 93 Components (top)
phyBOARD-Nash i.MX 93 Components (bottom)
2. Getting Started
The phyBOARD-Segin i.MX 93 and phyBOARD-Nash i.MX 93 Kit is shipped with a pre-flashed SD card. It contains the phytec-qt6demo-image and can be used directly as a boot source. The eMMC is programmed with only a U-Boot by default. You can get all sources from the PHYTEC download server. This chapter explains how to flash a BSP image to SD card and how to start the board.
There are several ways to flash an image to SD card or even eMMC. Most notably
using simple, sequential writing with the Linux command line tool dd. An
alternative way is to use PHYTEC’s system initialization program called
partup, which makes it especially easy to
format more complex systems. You can get prebuilt Linux binaries of partup from its release page. Also read
partup’s README for installation
instructions.
2.1. Get the Image
The image contains all necessary files and makes sure partitions and any raw
data are correctly written. Both the partup package and the WIC image, which can
be flashed using dd, can be downloaded from the PHYTEC download server.
Get either the partup package or the WIC image from the download server:
host:~$ wget https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/phytec-qt6demo-image-phyboard-segin-imx93-2.partup
host:~$ wget https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/phytec-qt6demo-image-phyboard-segin-imx93-2.wic.xz
Note
For eMMC, more complex partitioning schemes or even just large images, we
recommend using the partup package, as it is faster in writing than dd
and allows for a more flexible configuration of the target flash device.
2.2. Write the Image to SD Card
Warning
To create your bootable SD card, you must have root privileges on your Linux host PC. Be very careful when specifying the destination device! All files on the selected device will be erased immediately without any further query!
Selecting the wrong device may result in data loss and e.g. could erase your currently running system on your host PC!
2.2.1. Finding the Correct Device
To create your bootable SD card, you must first find the correct device name of your SD card and possible partitions. If any partitions of the SD cards are mounted, unmount those before you start copying the image to the SD card.
In order to get the correct device name, remove your SD card and execute:
host:~$ lsblkNow insert your SD card and execute the command again:
host:~$ lsblkCompare the two outputs to find the new device names listed in the second output. These are the device names of the SD card (device and partitions if the SD card was formatted).
In order to verify the device names being found, execute the command
sudo dmesg. Within the last lines of its output, you should also find the device names, e.g./dev/sdeor/dev/mmcblk0(depending on your system).
Alternatively, you may use a graphical program of your choice, like GNOME Disks or KDE Partition Manager, to find the correct device.
Now that you have the correct device name, e.g. /dev/sde,
you can see the partitions which must be unmounted if the SD card is formatted.
In this case, you will also find the device name with an appended number
(e.g. /dev/sde1) in the output. These represent the partitions. Some Linux
distributions automatically mount partitions when the device gets plugged in.
Before writing, however, these need to be unmounted to avoid data corruption.
Unmount all those partitions, e.g.:
host:~$ sudo umount /dev/sde1
host:~$ sudo umount /dev/sde2
Now, the SD card is ready to be flashed with an image, using either partup,
dd or bmap-tools.
2.2.2. Using bmap-tools
One way to prepare an SD card is using
bmap-tools. Yocto
automatically creates a block map file (<IMAGENAME>-<MACHINE>.wic.bmap) for
the WIC image that describes the image content and includes checksums for data
integrity. bmaptool is packaged by various Linux distributions. For
Debian-based systems install it by issuing:
host:~$ sudo apt install bmap-tools
Flash a WIC image to SD card by calling:
host:~$ bmaptool copy phytec-qt6demo-image-phyboard-segin-imx93-2?(.rootfs).wic?(.xz) /dev/<your_device>
Replace <your_device> with your actual SD card’s device name found previously,
and make sure to place the file <IMAGENAME>-<MACHINE>.wic.bmap alongside
the regular WIC image file, so bmaptool knows which blocks to write and which
to skip.
Warning
bmaptool only overwrites the areas of an SD card where image data is located. This means that a previously written U-Boot environment may still be available after writing the image.
2.2.3. Using partup
Writing to an SD card with partup is done in a single command:
host:~$ sudo partup install phytec-qt6demo-image-phyboard-segin-imx93-2?(.rootfs).partup /dev/<your_device>
Make sure to replace <your_device> with your actual device name found previously.
Further usage of partup is explained at its official documentation website.
Warning
Host systems which are using resize2fs version 1.46.6 and older (e.g. Ubuntu 22.04) are not able to write partup packages created with Yocto Mickledore or newer to SD-Card. This is due to a new default option in resize2fs which causes an incompatibility. See release notes.
Note
partup has the advantage of allowing to clear specific raw areas in the MMC user area, which is used in our provided partup packages to erase any existing U-Boot environments. This is a known issue bmaptool does not solve, as mentioned in the previous chapter.
Another key advantage of partup over other flashing tools is that it allows configuring MMC specific parts, like writing to eMMC boot partitions, without the need to call multiple other commands when writing.
2.2.4. Using dd
After having unmounted all SD card’s partitions, you can create your bootable SD card.
Some PHYTEC BSPs produce uncompressed images (with filename-extension *.wic), and some others produce compressed images (with filename-extension *.wic.xz).
To flash an uncompressed images (*.wic) use command below:
host:~$ sudo dd if=phytec-qt6demo-image-phyboard-segin-imx93-2?(.rootfs).wic of=/dev/<your_device> bs=1M conv=fsync status=progress
Or to flash a compressed images (*.wic.xz) use that command:
host:~$ xzcat phytec-qt6demo-image-phyboard-segin-imx93-2?(.rootfs).wic.xz | sudo dd of=/dev/<your_device> bs=1M conv=fsync status=progress
Again, make sure to replace <your_device> with your actual device name found previously.
The parameter conv=fsync forces a sync operation on the device before
dd returns. This ensures that all blocks are written to the SD card and
none are left in memory. The parameter status=progress will print out
information on how much data is and still has to be copied until it is
finished.
2.3. First Start-up
To boot from an SD card, the bootmode switch (S3) needs to be set to the following position:
Insert the SD card
Connect the targets debug console with your host. Use UART1 console on PEB-EVAL-01 for phyBOARD-Segin and X-37 USB-C debug for phyBOARD-Nash.
Power up the board
Open serial/usb port with 115200 baud and 8N1 (you should see u-boot/linux start on the console
3. Building the BSP
This section will guide you through the general build process of the i.MX 93 BSP using Yocto and the phyLinux script. For more information about our meta-layer or Yocto in general visit: Yocto Reference Manual (mickledore).
3.1. Basic Set-Up
If you have never created a Phytec BSP with Yocto on your computer, you should take a closer look at the chapter BSP Workspace Installation in the Yocto Reference Manual (mickledore).
3.2. Get the BSP
There are two ways to get the BSP sources. You can download the complete BSP sources from our download page: BSP-Yocto-i.MX93; or you can fetch and build it yourself with Yocto. This is particularly useful if you want to make customizations.
The phyLinux script is a basic management tool for PHYTEC Yocto BSP releases written in Python. It is mainly a helper to get started with the BSP structure.
Create a fresh project folder, get phyLinux, and make the script executable:
host:~$ mkdir ~/yocto host:~$ cd yocto/ host:~/yocto$ wget https://download.phytec.de/Software/Linux/Yocto/Tools/phyLinux host:~/yocto$ chmod +x phyLinux
Warning
A clean folder is important because phyLinux will clean its working directory. Calling phyLinux from a directory that isn’t empty will result in a warning.
Run phyLinux:
host:~/yocto$ ./phyLinux init
Note
On the first initialization, the phyLinux script will ask you to install the Repo tool in your
/usr/local/bindirectory.During the execution of the init command, you need to choose your processor platform (SoC), PHYTEC’s BSP release number, and the hardware you are working on.
Note
If you cannot identify your board with the information given in the selector, have a look at the invoice for the product. And have a look at our BSP.
It is also possible to pass this information directly using command line parameters:
host:~/yocto$ DISTRO=ampliphy-vendor-wayland MACHINE=phyboard-segin-imx93-2 ./phyLinux init -p imx93 -r BSP-Yocto-NXP-i.MX93-PD24.1.1
After the execution of the init command, phyLinux will print a few important notes. For example, it will print your git identify, SOC and BSP release which was selected as well as information for the next steps in the build process.
3.2.1. Starting the Build Process
Set up the shell environment variables:
host:~/yocto$ source sources/poky/oe-init-build-env
Note
This needs to be done every time you open a new shell for starting builds.
The current working directory of the shell should change to build/.
Open the main configuration file and accept the GPU and VPU binary license agreements. Do this by uncommenting the corresponding line, as below.
host:~/yocto/build$ vim conf/local.conf # Uncomment to accept NXP EULA # EULA can be found under ../sources/meta-freescale/EULA ACCEPT_FSL_EULA = "1"
Build your image:
host:~/yocto/build$ bitbake phytec-qt6demo-image
Note
For the first build we suggest starting with our smaller non-graphical image phytec-headless-image to see if everything is working correctly.
host:~/yocto/build$ bitbake phytec-headless-image
The first compile process takes about 40 minutes on a modern Intel Core i7. All subsequent builds will use the filled caches and should take about 3 minutes.
3.2.2. BSP Images
All images generated by Bitbake are deployed to
~/yocto/build/deploy*/images/<machine>. The following list shows for
example all files generated for the phyboard-segin-imx93-2 machine:
u-boot.bin: Binary compiled U-boot bootloader (U-Boot). Not the final Bootloader image!
oftree: Default kernel device tree
u-boot-spl.bin: Secondary program loader (SPL)
bl31-imx93.bin: ARM Trusted Firmware binary
lpddr4_dmem_1d_v202201.bin, lpddr4_dmem_2d_v202201.bin, lpddr4_imem_1d_v202201.bin, lpddr4_imem_2d_v202201.bin: DDR PHY firmware images
imx-boot: Bootloader build by imx-mkimage which includes SPL, U-Boot, ARM Trusted Firmware and DDR firmware. This is the final bootloader image which is bootable.
Image: Linux kernel image
Image.config: Kernel configuration
imx93-phyboard-*.dtb: Kernel device tree file
imx93-phy*.dtbo: Kernel device tree overlay files
phytec-*.tar.gz: Root file system, of bitbake-image that was built.
phytec-qt6demo-image-phyboard-*-imx93-*.tar.gz: when bitbake-build was processed for
phytec-qt6demo-imagephytec-headless-image-phyboard-*-imx93-*.tar.gz: when bitbake-build was processed for
phytec-headless-image
phytec-*.wic.xz: Compressed bootable SD card image of bitbake-image that was built. Includes bootloader, DTBs, Kernel and Root file system.
phytec-qt6demo-image-phyboard-*-imx93-*.wic.xz: when bitbake-build was processed for
phytec-qt6demo-imagephytec-headless-image-phyboard-*-imx93-*.wic.xz: when bitbake-build was processed for
phytec-headless-image
imx93-11x11-evk_m33_*.bin, binaries of demo applications for the Cortex-M33 MCU; can be manually loaded and started with U-Boot or Linux
4. Installing the OS
4.1. Bootmode Switch (S3)
Tip
Hardware revision baseboard:
phyBOARD-Segin-i.MX 93: 1472.5
phyBOARD-Nash-i.MX 93: 1616.0
The phyBOARD-Segin/Nash i.MX 93 features a boot switch with four individually switchable ports to select the phyCORE-i.MX 93 default bootsource.

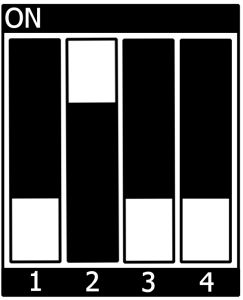

eMMC |
Internal Fuses |
USB Serial Download |

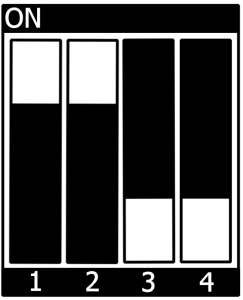

SD Card |
4.2. Flash eMMC
To boot from eMMC, make sure that the BSP image is flashed correctly to the eMMC and the bootmode switch (S3) is set to eMMC.
Warning
When eMMC and SD card are flashed with the same (identical) image, the UUIDs of the boot partitions are also identical. If the SD card is connected when booting, this leads to non-deterministic behavior as Linux mounts the boot partition based on UUID.
target:~$ blkid
can be run to inspect whether the current setup is affected. If mmcblk0p1 and mmcblk1p1 have an identical UUID, the setup is affected.
4.2.1. Flash eMMC from SD Card
If there is no network available, you can update the eMMC from SD card. For
that, you only need a ready-to-use image file (*.wic) located on the
SD card. Because the image file is quite large, you have to enlarge your SD card
to use its full space (if it was not enlarged before). To enlarge your SD card,
see Resizing ext4 Root Filesystem.
Alternatively, flash a partup package to the SD card, as described in Getting Started. This will ensure the full space of the SD card is used.
4.2.1.1. Flash eMMC from SD card in Linux on Target
You can flash the eMMC on Linux. You only need a partup package or WIC image saved on the SD card.
Show your saved partup package or WIC image or WIC.XZ image files on the SD card:
target:~$ ls phytec-qt6demo-image-phyboard-segin-imx93-2.partup phytec-qt6demo-image-phyboard-segin-imx93-2.wic.xz
Show list of available MMC devices:
target:~$ ls /dev | grep mmc mmcblk1 mmcblk1p1 mmcblk1p2 mmcblk0 mmcblk0boot0 mmcblk0boot1 mmcblk0p1 mmcblk0p2 mmcblk0rpmb
The eMMC device can be recognized by the fact that it contains two boot partitions: (mmcblk0boot0; mmcblk0boot1)
Write the image to the phyCORE-i.MX 93 eMMC (/dev/mmcblk0 without partition) using partup:
target:~$ partup install phytec-qt6demo-image-phyboard-segin-imx93-2.partup /dev/mmcblk0
Tip
Using partup is highly recommended since it is easier to use and has the advantage of using the full capacity of the eMMC device, adjusting partitions accordingly.
Note
Alternatively,
ddmay be used instead.For uncompressed WIC images (*.wic):
target:~$ dd if=phytec-qt6demo-image-phyboard-segin-imx93-2.wic of=/dev/mmcblk0 bs=1M conv=fsync status=progress
For compressed WIC images (*.wic.xz):
target:~$ zstdcat phytec-qt6demo-image-phyboard-segin-imx93-2.wic.xz | sudo dd of=/dev/mmcblk0 bs=1M conv=fsync status=progress
Keep in mind that the root partition does not make use of the full space when flashing with
dd.After a complete write, your board can boot from eMMC.
Warning
Before this will work, you need to configure the bootmode switch (S3) to eMMC.
4.2.2. Flash eMMC from Network
i.MX 93 boards have an Ethernet connector and can be updated over a network. Be
sure to set up the development host correctly. The IP needs to be set to
192.168.3.10, the netmask to 255.255.255.0, and a TFTP server needs to be
available. From a high-level point of view, an eMMC device is like an SD card.
Therefore, it is possible to flash the WIC image (<name>.wic) from
the Yocto build system directly to the eMMC. The image contains the
bootloader, kernel, device tree, device tree overlays, and root file system.
Note
Some PHYTECs BSPs produce compressed .wic.xz images. In this case, the
compressed image must first be uncompressed.
host:~$ unxz phytec-qt6demo-image-phyboard-segin-imx93-2.wic.xz
4.2.2.1. Flash eMMC via Network in Linux on Target
You can update the eMMC from your target.
Tip
A working network is necessary! Setup Network Host
Take an uncompressed image on the host and send it with ssh through the network to the eMMC of the target with a one-line command:
target:~$ ssh <USER>@192.168.3.10 "dd if=<path_to_file>/phytec-qt6demo-image-phyboard-segin-imx93-2.wic" | dd of=/dev/mmcblk0 bs=1M conv=fsync status=progress
4.2.2.2. Flash eMMC via Network in Linux on Host
It is also possible to install the OS at eMMC from your Linux host. As before, you need a complete image on your host.
Tip
A working network is necessary! Setup Network Host
Show your available image files on the host:
host:~$ ls
phytec-qt6demo-image-phyboard-segin-imx93-2.wic
Send the image with the dd command combined with ssh through the network
to the eMMC of your device:
host:~$ dd if=phytec-qt6demo-image-phyboard-segin-imx93-2.wic bs=1M status=progress | ssh root@192.168.3.11 "dd of=/dev/mmcblk0 conv=fsync"
4.2.3. Flash eMMC U-Boot image via Network from running U-Boot
Update the standalone U-Boot image imx-boot is also possible from U-Boot. This can be used if the bootloader on eMMC is located in the eMMC user area.
Tip
A working network is necessary! Setup Network Host
Load image over tftp into RAM and then write it to eMMC:
u-boot=> tftp ${loadaddr} imx-boot
u-boot=> setexpr nblk ${filesize} / 0x200
u-boot=> mmc dev 0
u-boot=> mmc write ${loadaddr} 0x40 ${nblk}
Hint
The hexadecimal value represents the offset as a multiple of 512 byte blocks. See the offset table for the correct value of the corresponding SoC.
4.2.4. Flash eMMC from USB
4.2.4.1. Flash eMMC from USB in Linux
These steps will show how to flash the eMMC on Linux with a USB stick. You only need a complete image saved on the USB stick and a bootable WIC image. (e.g. phytec-qt6demo-image-phyboard-segin-imx93-2.wic). Set the bootmode switch (S3) to SD Card.
Insert and mount the USB stick:
[ 60.458908] usb-storage 1-1.1:1.0: USB Mass Storage device detected [ 60.467286] scsi host0: usb-storage 1-1.1:1.0 [ 61.504607] scsi 0:0:0:0: Direct-Access 8.07 PQ: 0 ANSI: 2 [ 61.515283] sd 0:0:0:0: [sda] 3782656 512-byte logical blocks: (1.94 GB/1.80 GiB) [ 61.523285] sd 0:0:0:0: [sda] Write Protect is off [ 61.528509] sd 0:0:0:0: [sda] No Caching mode page found [ 61.533889] sd 0:0:0:0: [sda] Assuming drive cache: write through [ 61.665969] sda: sda1 [ 61.672284] sd 0:0:0:0: [sda] Attached SCSI removable disk target:~$ mount /dev/sda1 /mnt
Now show your saved image files on the USB Stick:
target:~$ cd /mnt target:~$ ls phytec-qt6demo-image-phyboard-segin-imx93-2.wic
Show list of available MMC devices:
target:~$ ls /dev | grep mmc mmcblk1 mmcblk1p1 mmcblk1p2 mmcblk0 mmcblk0boot0 mmcblk0boot1 mmcblk0p1 mmcblk0p2 mmcblk0rpmb
The eMMC device can be recognized by the fact that it contains two boot partitions: (mmcblk0boot0; mmcblk0boot1)
Write the image to the phyCORE-i.MX 93 eMMC (/dev/mmcblk0 without partition):
target:~$ dd if=phytec-qt6demo-image-phyboard-segin-imx93-2.wic of=/dev/mmcblk0 bs=1M conv=fsync status=progress
After a complete write, your board can boot from eMMC.
Tip
Before this will work, you need to configure the bootmode switch (S3) to eMMC.
4.3. RAUC
The RAUC (Robust Auto-Update Controller) mechanism support has been added to meta-ampliphy. It controls the procedure of updating a device with new firmware. This includes updating the Linux kernel, Device Tree, and root filesystem. PHYTEC has written an online manual on how we have intergraded RAUC into our BSPs: L-1006e.A5 RAUC Update & Device Management Manual.
5. Development
5.1. Host Network Preparation
For various tasks involving a network in the Bootloader, some host services are required to be set up. On the development host, a TFTP, NFS and DHCP server must be installed and configured. The following tools will be needed to boot via Ethernet:
host:~$ sudo apt install tftpd-hpa nfs-kernel-server kea
5.1.1. TFTP Server Setup
First, create a directory to store the TFTP files:
host:~$ sudo mkdir /srv/tftp
Then copy your BSP image files to this directory and make sure other users have read access to all the files in the tftp directory, otherwise they are not accessible from the target.
host:~$ sudo chmod -R o+r /srv/tftp
You also need to configure a static IP address for the appropriate interface. The default IP address of the PHYTEC evaluation boards is 192.168.3.11. Setting a host address 192.168.3.10 with netmask 255.255.255.0 is a good choice.
host:~$ ip addr show <network-interface>
Replace <network-interface> with the network interface you configured and want to connect the board to. You can show all network interfaces by not specifying a network interface.
The message you receive should contain this:
inet 192.168.3.10/24 brd 192.168.3.255
Create or edit the
/etc/default/tftpd-hpafile:# /etc/default/tftpd-hpa TFTP_USERNAME="tftp" TFTP_DIRECTORY="/srv/tftp" TFTP_ADDRESS=":69" TFTP_OPTIONS="-s -c"
Set TFTP_DIRECTORY to your TFTP server root directory
Set TFTP_ADDRESS to the host address the server is listening to (set to 0.0.0.0:69 to listen to all local IPs)
Set TFTP_OPTIONS, the following command shows the available options:
host:~$ man tftpd
Restart the services to pick up the configuration changes:
host:~$ sudo service tftpd-hpa restart
Now connect the ethernet port of the board to your host system. We also need a network connection between the embedded board and the TFTP server. The server should be set to IP 192.168.3.10 and netmask 255.255.255.0.
5.1.1.1. NFS Server Setup
Create an nfs directory:
host:~$ sudo mkdir /srv/nfs
The NFS server is not restricted to a certain file system location, so all we have to do on most distributions is modify the file
/etc/exportsand export our root file system to the embedded network. In this example file, the whole directory is exported and the “lab network” address of the development host is 192.168.3.10. The IP address has to be adapted to the local needs:/srv/nfs 192.168.3.0/255.255.255.0(rw,no_root_squash,sync,no_subtree_check)
Now the NFS-Server has to read the
/etc/exportfsfile again:host:~$ sudo exportfs -ra
5.1.1.2. DHCP Server setup
Create or edit the
/etc/kea/kea-dhcp4.conffile; Using the internal subnet sample. Replace <network-interface> with the name for the physical network interface:{ "Dhcp4": { "interfaces-config": { "interfaces": [ "<network-interface>/192.168.3.10" ] }, "lease-database": { "type": "memfile", "persist": true, "name": "/tmp/dhcp4.leases" }, "valid-lifetime": 28800, "subnet4": [{ "id": 1, "next-server": "192.168.3.10", "subnet": "192.168.3.0/24", "pools": [ { "pool": "192.168.3.1 - 192.168.3.255" } ] }] } }
Warning
Be careful when creating subnets as this may interfere with the company
network policy. To be on the safe side, use a different network and specify
that via the interfaces configuration option.
Now the DHCP-Server has to read the
/etc/kea/kea-dhcp4.conffile again:host:~$ sudo systemctl restart kea-dhcp4-server
When you boot/restart your host PC and don’t have the network interface, as specified in the kea-dhcp4 config, already active the kea-dhcp4-server will fail to start. Make sure to start/restart the systemd service when you connect the interface.
5.2. Booting the Kernel from a Network
Booting from a network means loading the kernel and device tree over TFTP and the root file system over NFS. The bootloader itself must already be loaded from another available boot device.
5.2.1. Place Images on Host for Netboot
Copy the kernel image to your tftp directory:
host:~$ cp Image /srv/tftp
Copy the devicetree to your tftp directory:
host:~$ cp oftree /srv/tftp
Copy all the overlays you want to use into your tftp directory:
host:~$ cp *.dtbo /srv/tftp
Make sure other users have read access to all the files in the tftp directory, otherwise they are not accessible from the target:
host:~$ sudo chmod -R o+r /srv/tftp
Extract the rootfs to your nfs directory:
host:~$ sudo tar -xvzf phytec-qt6demo-image-phyboard-segin-imx93-2.tar.gz -C /srv/nfs
Note
Make sure you extract with sudo to preserve the correct ownership.
5.2.2. Set the bootenv.txt for Netboot
Create a bootenv.txt file in your tftp directory and write the following variables into it.
bootfile=Image
fdt_file=oftree
nfsroot=/srv/nfs
overlays=<overlayfilenames>
<overlayfilenames> has to be replaced with the devicetree overlay filenames that you want to use. Separate the filenames by spaces. For example:
overlays=example-overlay1.dtbo example-overlay2.dtbo
Tip
All supported devicetree overlays are in the device tree chapter.
5.2.3. Network Settings on Target
To customize the targets ethernet configuration, please follow the description here: Network Environment Customization
5.2.4. Booting from an Embedded Board
Boot the board into the U-boot prompt and press any key to hold.
To boot from a network, call:
u-boot=> run netboot
5.3. Working with UUU-Tool
The Universal Update Utility Tool (UUU-Tool) from NXP is a software to execute on the host to load and run the bootloader on the board through SDP (Serial Download Protocol). For detailed information visit https://github.com/nxp-imx/mfgtools or download the Official UUU-tool documentation.
5.3.1. Host preparations for UUU-Tool Usage
Follow the instructions from https://github.com/nxp-imx/mfgtools#linux.
If you built UUU from source, add it to
PATH:This BASH command adds UUU only temporarily to
PATH. To add it permanently, add this line to~/.bashrc.export PATH=~/mfgtools/uuu/:"$PATH"Set udev rules (documented in
uuu -udev):host:~$ sudo sh -c "uuu -udev >> /etc/udev/rules.d/70-uuu.rules" host:~$ sudo udevadm control --reload
5.3.2. Get Images
Download imx-boot from our server or get it from your Yocto build directory at build/deploy/images/phyboard-segin-imx93-2/. For flashing a wic image to eMMC, you will also need phytec-qt6demo-image-phyboard-segin-imx93-2.wic.
5.3.3. Prepare Target
Set the bootmode switch (S3) to USB Serial Download. Also, connect USB port X8 (USB micro/OTG connector) to your host.
5.3.4. Starting bootloader via UUU-Tool
Execute and power up the board:
host:~$ sudo uuu -b spl imx-boot
You can see the bootlog on the console via UART1 console on PEB-EVAL-01 for phyBOARD-Segin and X-37 USB-C debug for phyBOARD-Nash, as usual.
Note
The default boot command when booting with UUU-Tool is set to fastboot. If you want to change this, please adjust the environment variable bootcmd_mfg in U-boot prompt with setenv bootcmd_mfg. Please note, when booting with UUU-tool the default environment is loaded. Saveenv has no effect. If you want to change the boot command permanently for UUU-boot, you need to change this in U-Boot code.
5.3.5. Flashing U-boot Image to eMMC via UUU-Tool
Warning
UUU flashes U-boot into eMMC BOOT (hardware) boot partitions, and it sets the BOOT_PARTITION_ENABLE in the eMMC! This is a problem since we want the bootloader to reside in the eMMC USER partition. Flashing next U-Boot version .wic image and not disabling BOOT_PARTITION_ENABLE bit will result in device always using U-boot saved in BOOT partitions. To fix this in U-Boot:
u-boot=> mmc partconf 0 0 0 0
u-boot=> mmc partconf 0
EXT_CSD[179], PARTITION_CONFIG:
BOOT_ACK: 0x0
BOOT_PARTITION_ENABLE: 0x0
PARTITION_ACCESS: 0x0
or check Disable booting from eMMC boot partitions from Linux.
This way the bootloader is still flashed to eMMC BOOT partitions but it is not used!
When using partup tool and .partup package for eMMC flashing this is
done by default, which makes partup again superior flash option.
Execute and power up the board:
host:~$ sudo uuu -b emmc imx-boot
5.3.6. Flashing wic Image to eMMC via UUU-Tool
Execute and power up the board:
host:~$ sudo uuu -b emmc_all imx-boot phytec-qt6demo-image-phyboard-segin-imx93-2.wic
5.4. Standalone Build preparation
In this section, we describe how to build the U-Boot and the Linux kernel without using the Yocto Project. This procedure makes the most sense for development. The U-Boot source code, the Linux kernel, and all other git repositories are available on our Git server at git://git.phytec.de.
Note
Should your company firewall/gateway inhibit the git protocol, you may use HTTP or HTTPS instead (e.g. git clone git://git.phytec.de/u-boot-imx)
5.4.1. Git Repositories
Used U-Boot repository:
git://git.phytec.de/u-boot-imx
Our U-Boot is based on the u-boot-imx and adds board-specific patches.
Used Linux kernel repository:
git://git.phytec.de/linux-imx
Our i.MX 93 kernel is based on the linux-imx kernel.
To find out which u-boot and kernel tags to use for a specific board, have a look at your BSP source folder:
meta-phytec/dynamic-layers/freescale-layer/recipes-kernel/linux/linux-imx_*.bb meta-phytec/recipes-bsp/u-boot/u-boot-imx_*.bb
5.4.2. Get the SDK
You can download the SDK here, or build it yourself with Yocto:
Move to the Yocto build directory:
host:~$ source sources/poky/oe-init-build-env host:~$ bitbake -c populate_sdk phytec-qt6demo-image # or another image
After a successful build the SDK installer is deployed to build/deploy*/sdk.
5.4.3. Install the SDK
Set correct permissions and install the SDK:
host:~$ chmod +x phytec-ampliphy-vendor-wayland-glibc-x86_64-phytec-qt6demo-image-cortexa55-toolchain-4.2.3.sh host:~$ ./phytec-ampliphy-vendor-wayland-glibc-x86_64-phytec-qt6demo-image-cortexa55-toolchain-4.2.3.sh ============================================================================================================ Enter target directory for SDK (default: /opt/ampliphy-vendor-wayland/4.2.3): You are about to install the SDK to "/opt/ampliphy-vendor-wayland/4.2.3". Proceed [Y/n]? Y Extracting SDK...done Setting it up...done SDK has been successfully set up and is ready to be used.
5.4.4. Using the SDK
Activate the toolchain for your shell by sourcing the environment-setup file in the toolchain directory:
host:~$ source /opt/ampliphy-vendor-wayland/4.2.3/environment-setup-cortexa55-phytec-linux
5.4.5. Installing Required Tools
Building Linux and U-Boot out-of-tree requires some additional host tool dependencies to be installed. For Ubuntu you can install them with:
host:~$ sudo apt install bison flex libssl-dev
5.5. U-Boot standalone build
5.5.1. Get the source code
Get the U-Boot sources:
host:~$ git clone git://git.phytec.de/u-boot-imx
To get the correct U-Boot tag you need to take a look at our release notes, which can be found here: release notes
The tag needed at this release is called v2023.04_2.2.0-phy3
Check out the needed U-Boot tag:
host:~$ cd ~/u-boot-imx/
host:~/u-boot-imx$ git fetch --all --tags
host:~/u-boot-imx$ git checkout tags/v2023.04_2.2.0-phy3
Technically, you can now build the U-Boot, but practically there are some further steps necessary:
Create your own development branch:
host:~/u-boot-imx$ git switch --create <new-branch>
Note
You can name your development branch as you like, this is just an example.
Set up a build environment:
host:~/u-boot-imx$ source /opt/ampliphy-vendor-wayland/4.2.3/environment-setup-cortexa55-phytec-linux
5.5.2. Get the needed binaries
To build the imx-boot, you need to gather these files for later use with imx-mkimage tool:
ARM Trusted firmware binary (mkimage tool compatible format bl31.bin): bl31-imx93.bin
OPTEE image (optional): tee.bin
DDR firmware files (mkimage tool compatible format lpddr4_[i,d]mem_*d_*.bin): lpddr4_dmem_1d_*.bin, lpddr4_dmem_2d_*.bin, lpddr4_imem_1d_*.bin, lpddr4_imem_2d_*.bin
Container image: mx93a1-ahab-container.img
If you already built our BSP with Yocto, you can get these files from the directory mentioned here: BSP Images
Or you can download the files from the PHYTEC download server (https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools/). You can use the commands below to download all the files from that server:
host:~$ mkdir ./artefacts && cd ./artefacts
host:~/artefacts$ wget \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//bl31-imx93.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//tee.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//lpddr4_dmem_1d_v202201.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//lpddr4_dmem_2d_v202201.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//lpddr4_imem_1d_v202201.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//lpddr4_imem_2d_v202201.bin \
https://download.phytec.de/Software/Linux/BSP-Yocto-i.MX93/BSP-Yocto-NXP-i.MX93-PD24.1.1/images/ampliphy-vendor-wayland/phyboard-segin-imx93-2/imx-boot-tools//mx93a1-ahab-container.img
host:~/artefacts$ cd ..
5.5.3. Build the bootloader
Build u-boot:
host:~/u-boot-imx$ make <defconfig> host:~/u-boot-imx$ make host:~/u-boot-imx$ cd ..
Note
In command above replace
<defconfig>withimx93-phyboard-segin_defconfigorimx93-phyboard-nash_defconfig, depending on the board you are about to build for.
5.5.3.1. Build final flash.bin with imx-mkimage
Get imx-mkimage:
host:~$ git clone https://github.com/nxp-imx/imx-mkimage host:~$ cd imx-mkimage/ host:~/imx-mkimage$ git checkout tags/lf-6.1.55-2.2.0
Copy firmware binaries into imx-mkimage
host:~/imx-mkimage$ cp ../artefacts/bl31-imx93.bin ./iMX9/bl31.bin host:~/imx-mkimage$ cp \ ../artefacts/lpddr4_* \ ../artefacts/mx93a1-ahab-container.img \ ../artefacts/tee.bin \ ./iMX9/
Copy u-boot binaries and DTB into imx-mkimage
host:~/imx-mkimage$ cp ../u-boot-imx/spl/u-boot-spl.bin ../u-boot-imx/u-boot.bin ./iMX9/ host:~/imx-mkimage$ cp ../u-boot-imx/arch/arm/dts/<dtb> ./iMX9/
Note
In command above replace
<dtb>withimx93-phyboard-segin.dtborimx93-phyboard-nash.dtb, depending on the board you are about to build for.Build final flash.bin binary
host:~/imx-mkimage$ make SOC=iMX9 REV=A1 flash_singleboot
5.5.4. Flash the bootloader to a block device
The flash.bin can be found at imx-mkimage/iMX9/ directory and now can be flashed. A chip-specific offset is needed:
SoC |
Offset User Area |
Offset Boot Partition |
eMMC Device |
|---|---|---|---|
i.MX 93 |
32 kiB |
0 kiB |
/dev/mmcblk0 |
E.g. flash SD card:
host:~/imx-mkimage$ sudo dd if=./iMX9/flash.bin of=<sd-card> bs=1024 seek=32 conv=sync
Note
In the command above, replace <sd-card> with your sd-card device name.
For more information on how to find the device name, see the section
Finding the Correct Device in Getting Started.
Hint
The specific offset values are also declared in the Yocto variables “BOOTLOADER_SEEK” and “BOOTLOADER_SEEK_EMMC”
5.6. Kernel standalone build
5.6.1. Setup sources
The used linux-imx branch can be found in the release notes
The tag needed for this release is called v6.1.55_2.2.0-phy3
Check out the needed linux-imx tag:
host:~$ git clone git://git.phytec.de/linux-imx host:~$ cd ~/linux-imx/ host:~/linux-imx$ git fetch --all --tags host:~/linux-imx$ git checkout tags/v6.1.55_2.2.0-phy3
For committing changes, it is highly recommended to switch to a new branch:
host:~/linux-imx$ git switch --create <new-branch>
Set up a build environment:
host:~/linux-imx$ source /opt/ampliphy-vendor-wayland/4.2.3/environment-setup-cortexa55-phytec-linux
5.6.2. Build the kernel
Build the linux kernel:
host:~/linux-imx$ make imx_v8_defconfig imx9_phytec_distro.config imx9_phytec_platform.config host:~/linux-imx$ make -j$(nproc)
Install kernel modules to e.g. NFS directory:
host:~/linux-imx$ make INSTALL_MOD_PATH=/home/<user>/<rootfspath> modules_install
The Image can be found at ~/linux-imx/arch/arm64/boot/Image
The dtb can be found at ~/linux-imx/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dtb
For (re-)building only Devicetrees and -overlays, it is sufficient to run
host:~/linux-imx$ make dtbs
Note
If you are facing the following build issue:
scripts/dtc/yamltree.c:9:10: fatal error: yaml.h: No such file or directory
Make sure you installed the package “libyaml-dev” on your host system:
host:~$ sudo apt install libyaml-dev
5.6.3. Copy Kernel to SD Card
When one-time boot via netboot is not sufficient, the kernel along with its modules and the corresponding device tree blob may be copied directly to a mounted SD card.
host:~/linux-imx$ cp arch/arm64/boot/Image /path/to/sdcard/boot/
host:~/linux-imx$ cp arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dtb /path/to/sdcard/boot/oftree
host:~/linux-imx$ make INSTALL_MOD_PATH=/path/to/sdcard/root/ modules_install
5.7. Format SD-Card
Most images are larger than the default root partition. To flash any storage device with SD Card, the rootfs needs to be expanded or a separate partition needs to be created. There are some different ways to format the SD Card. The easiest way to do this is to use the UI program Gparted.
5.7.1. Gparted
Get GParted:
host:~$ sudo apt install gparted
Insert the SD Card into your host and get the device name:
host:~$ dmesg | tail ... [30436.175412] sd 4:0:0:0: [sdb] 62453760 512-byte logical blocks: (32.0 GB/29.8 GiB) [30436.179846] sdb: sdb1 sdb2 ...
Unmount all SD Card partitions.
Launch GParted:
host:~$ sudo gparted
5.7.1.1. Expand rootfs
Warning
Running gparted on host systems which are using resize2fs version 1.46.6 and older (e.g. Ubuntu 22.04) are not able to expand the ext4 partition created with Yocto Mickledore and newer. This is due to a new default option in resize2fs which causes a incompatibility. See release notes.
Choose your SD Card device at the drop-down menu on the top right
Choose the ext4 root partition and click on resize:
Drag the slider as far as you like or enter the size manually.
Confirm your entry by clicking on the “Change size” button.
To apply your changes, press the green tick.
Now you can mount the root partition and copy e.g. the phytec-qt6demo-image-phyboard-segin-imx93-2.wic image to it. Then unmount it again:
host:~$ sudo cp phytec-qt6demo-image-phyboard-segin-imx93-2.wic /mnt/ ; sync host:~$ umount /mnt
5.7.1.2. Create the Third Partition
Choose your SD Card device at the drop-down menu on the top right
Choose the bigger unallocated area and press “New”:
Click “Add”
Confirm your changes by pressing the green tick.
Now you can mount the new partition and copy e.g. phytec-qt6demo-image-phyboard-segin-imx93-2.wic image to it. Then unmount it again:
host:~$ sudo mount /dev/sde3 /mnt host:~$ sudo cp phytec-qt6demo-image-phyboard-segin-imx93-2.wic /mnt/ ; sync host:~$ umount /mnt
6. Device Tree (DT)
6.1. Introduction
The following text briefly describes the Device Tree and can be found in the Linux kernel Documentation (https://docs.kernel.org/devicetree/usage-model.html)
“The “Open Firmware Device Tree”, or simply Devicetree (DT), is a data structure and language for describing hardware. More specifically, it is a description of hardware that is readable by an operating system so that the operating system doesn’t need to hard code details of the machine.”
The kernel documentation is a really good source for a DT introduction. An overview of the device tree data format can be found on the device tree usage page at devicetree.org.
6.2. PHYTEC i.MX 93 BSP Device Tree Concept
The following sections explain some rules PHYTEC has defined on how to set up device trees for our i.MX 93 SoC-based boards.
6.2.1. Device Tree Structure
Module.dtsi - Module includes all devices mounted on the SoM, such as PMIC and RAM.
Board.dts - include the module dtsi file. Devices that come from the i.MX 93 SoC but are just routed down to the carrier board and used there are included in this dts.
Overlay.dtso - enable/disable features depending on optional hardware that may be mounted or missing on SoM or baseboard (e.g SPI flash or PEB-AV-10)
From the root directory of the Linux Kernel our devicetree files for i.MX 9
platforms can be found in arch/arm64/boot/dts/freescale/.
6.2.2. Device Tree Overlay
Device Tree overlays are device tree fragments that can be merged into a device
tree during boot time. These are for example hardware descriptions of an
expansion board. They are instead of being added to the device tree as an extra
include, now applied as an overlay. They also may only contain setting the
status of a node depending on if it is mounted or not. The device tree overlays
are placed next to the other device tree files in our Linux kernel repository in
the folder arch/arm64/boot/dts/freescale/.
Available overlays for phyboard-segin-imx93-2.conf are:
imx93-phyboard-segin-peb-av-02.dtbo
imx93-phyboard-segin-peb-eval-01.dtbo
imx93-phycore-rpmsg.dtbo
imx93-phycore-no-emmc.dtbo
imx93-phycore-no-eth.dtbo
Available overlays for phyboard-nash-imx93-1.conf are:
imx93-phyboard-nash-peb-av-010.dtbo
imx93-phycore-rpmsg.dtbo
imx93-phycore-no-emmc.dtbo
imx93-phycore-no-eth.dtbo
The usage of overlays can be configured during runtime in Linux or U-Boot. Overlays are applied during the boot process in the bootloader after the boot command is called and before the kernel is loaded. The next sections explain the configuration in more detail.
6.2.2.1. Set ${overlays} variable
The ${overlays} U-Boot environment variable contains a space-separated list
of overlays that will be applied during boot. Depending on the boot source the
overlays have to either be placed in the boot partition of eMMC/SD-Card or are
loaded over tftp. Overlays set in the $KERNEL_DEVICETREE Yocto machine variable
will be automatically added to the boot partition of the final WIC image.
The ${overlays} variable can be either set directly in the U-Boot
environment or can be part of the external bootenv.txt environment file.
By default, the ${overlays} variable comes from the external bootenv.txt
environment file which is located in the boot partition.
You can read and write the file on booted target from linux:
target:~$ cat /boot/bootenv.txt
overlays=imx93-phyboard-segin-peb-eval-01.dtbo imx93-phyboard-segin-peb-av-02.dtbo
Note
Make sure the boot partition is mounted! If it is not you can mount it with:
target:~$ mount /dev/mmcblkXp0 /boot
Changes will take effect after the next reboot. If no bootenv.txt file is
available the overlays variable can be set directly in the U-Boot environment.
u-boot=> setenv overlays imx93-phyboard-segin-peb-av-02.dtbo
u-boot=> printenv overlays
overlays=imx93-phyboard-segin-peb-av-02.dtbo
u-boot=> boot
If a user defined ${overlays} variable should be directly loaded from U-Boot
environment but there is still an external bootenv.txt available, the ${no_bootenv}
variable needs to be set as a flag:
u-boot=> setenv no_bootenv 1
u-boot=> setenv overlays imx93-phyboard-segin-peb-av-02.dtbo
u-boot=> boot
More information about the external environment can be found in U-boot External Environment subsection of the device tree overlay section.
We use the ${overlays} variable for overlays describing expansion boards
that can not be detected during run time. To prevent applying overlays listed in
the ${overlays} variable during boot, the ${no_overlays} variable can be
set to 1 in the bootloader environment.
u-boot=> setenv no_overlays 1
u-boot=> boot
6.2.3. U-boot External Environment
During the start of the Linux Kernel the external environment bootenv.txt
text file will be loaded from the boot partition of an MMC device or via TFTP.
The main intention of this file is to store the ${overlays} variable. This makes
it easy to pre-define the overlays in Yocto depending on the used machine. The
content from the file is defined in the Yocto recipe bootenv found in
meta-phytec:
https://git.phytec.de/meta-phytec/tree/recipes-bsp/bootenv?h=mickledore
Other variables can be set in this file, too. They will overwrite the existing
settings in the environment. But only variables evaluated after issuing the boot
command can be overwritten, such as ${nfsroot} or ${mmcargs}. Changing other
variables in that file will not have an effect. See the usage during netboot as
an example.
If the external environment can not be loaded the boot process will be anyway continued with the values of the existing environment settings.
6.2.4. Change U-boot Environment from Linux on Target
Libubootenv is a tool included in our images to modify the U-Boot environment of Linux on the target machine.
Print the U-Boot environment using the following command:
target:~$ fw_printenv
Modify a U-Boot environment variable using the following command:
target:~$ fw_setenv <variable> <value>
Caution
Libubootenv takes the environment selected in a configuration file. The environment to use is inserted there, and by default it is configured to use the eMMC environment (known as the default used environment).
If the eMMC is not flashed or the eMMC environment is deleted, libubootenv
will not work. You should modify the /etc/fw_env.config file to match the
environment source that you want to use.
7. Accessing Peripherals
To find out which boards and modules are supported by the release of PHYTEC’s phyCORE-i.MX 93 BSP described herein, visit our BSP web page and click the corresponding BSP release in the download section. Here you can find all hardware supported in the columns “Hardware Article Number” and the correct machine name in the corresponding cell under “Machine Name”.
To achieve maximum software reuse, the Linux kernel offers a sophisticated
infrastructure that layers software components into board-specific parts. The
BSP tries to modularize the kit features as much as possible. When a customized
baseboard or even a customer-specific module is developed, most of the software
support can be re-used without error-prone copy-and-paste. The kernel code
corresponding to the boards can be found in device trees (DT) in the kernel
repository under arch/arm64/boot/dts/freescale/*.dts.
In fact, software reuse is one of the most important features of the Linux kernel, especially of the ARM implementation which always has to fight with an insane number of possibilities of the System-on-Chip CPUs. The whole board-specific hardware is described in DTs and is not part of the kernel image itself. The hardware description is in its own separate binary, called the Device Tree Blob (DTB) (section device tree).
Please read section PHYTEC i.MX 93 BSP Device Tree Concept to get an understanding of our i.MX 9 BSP device tree model.
The following sections provide an overview of the supported hardware components and their operating system drivers on the i.MX 9 platform. Further changes can be ported upon customer request.
7.1. i.MX 93 Pin Muxing
The i.MX 93 SoC contains many peripheral interfaces. In order to reduce package size and lower overall system cost while maintaining maximum functionality, many of the i.MX 93 terminals can multiplex up to eight signal functions. Although there are many combinations of pin multiplexing that are possible, only a certain number of sets, called IO sets, are valid due to timing limitations. These valid IO sets were carefully chosen to provide many possible application scenarios for the user.
Please refer to our Hardware Manual or the NXP i.MX 93 Reference Manual for more information about the specific pins and the muxing capabilities.
The IO set configuration, also called muxing, is done in the Device Tree. The driver pinctrl-single reads the DT’s node fsl,pins, and does the appropriate pin muxing.
The following is an example of the pin muxing of the UART1 device in imx93-phyboard-segin.dts:
pinctrl_uart1: uart1grp {
fsl,pins = <
MX93_PAD_UART1_RXD__LPUART1_RX 0x31e
MX93_PAD_UART1_TXD__LPUART1_TX 0x30e
>;
};
The first part of the string MX93_PAD_UART1_RXD__LPUART1_RX names the pad (in this example UART1_RXD). The second part of the string (LPUART1_RX) is the desired muxing option for this pad. The pad setting value (hex value on the right) defines different modes of the pad, for example, if internal pull resistors are activated or not. In this case, the internal pull up is activated.
The device tree representation for UART1 pinmuxing: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n262
7.2. Network
phyBOARD-Segin/Nash i.MX 93 provides two ethernet interfaces.
On phyBOARD-Segin we have:
a 100 megabit Ethernet provided by phyCORE-i.MX93
and 100 megabit Ethernet provided by phyBOARD.
On phyBOARD-Nash we have:
a 100 megabit Ethernet provided by phyCORE-i.MX93
and 1 gigabit Ethernet provided by phyBOARD.
All interfaces offer a standard Linux network port that can be programmed using
the BSD socket interface. The whole network configuration is handled by
the systemd-networkd daemon. The relevant configuration files can be found on
the target in /lib/systemd/network/ as well as the BSP in
meta-ampliphy/recipes-core/systemd/systemd-conf.
IP addresses can be configured within *.network files. The default IP address and netmask for eth0 is:
eth0: 192.168.3.11/24
The DT Ethernet setup might be split into two files depending on your hardware configuration: the module DT and the board-specific DT. The device tree set up for the FEC ethernet IP core where the ethernet PHY is populated on the SoM can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phycore-som.dtsi?h=v6.1.55_2.2.0-phy3#n61.
The device tree set up for EQOS Ethernet IP core where the PHY is populated on the phyBOARD-Segin/Nash i.MX 93 can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n114 or here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n83.
7.2.1. Network Environment Customization
7.2.1.1. U-boot network-environment
To find the Ethernet settings in the target bootloader:
u-boot=> printenv ipaddr serverip netmask
With your development host set to IP 192.168.3.10 and netmask 255.255.255.0, the target should return:
u-boot=> printenv ipaddr serverip netmask ipaddr=192.168.3.11 serverip=192.168.3.10 netmask=255.225.255.0
If you need to make any changes:
u-boot=> setenv <parameter> <value>
<parameter> should be one of ipaddr, netmask, gatewayip or serverip. <value> will be the actual value of the chosen parameter.
The changes you made are temporary for now. To save these:
u-boot=> saveenv
Here you can also change the IP address to DHCP instead of using a static one.
Configure:
u-boot=> setenv ip dhcp
Set up paths for TFTP and NFS. A modification could look like this:
u-boot=> setenv nfsroot /home/user/nfssrc
Please note that these modifications will only affect the bootloader settings.
Tip
Variables like nfsroot and netargs can be overwritten by the U-boot External
Environment. For netboot, the external environment will be loaded from tftp.
For example, to locally set the nfsroot variable in a bootenv.txt file,
locate the tftproot directory:
nfsroot=/home/user/nfssrc
There is no need to store the info on the target. Please note that this does not work for variables like ipaddr or serveraddr as they need to be already set when the external environment is being loaded.
7.2.1.2. Kernel network-environment
Find the ethernet settings for eth0 in the target kernel:
target:~$ ifconfig eth0 eth0 Link encap:Ethernet HWaddr 50:2D:F4:19:D6:33 UP BROADCAST MULTICAST MTU:1500 Metric:1 RX packets:0 errors:0 dropped:0 overruns:0 frame:0 TX packets:0 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
Temporary adaption of the eth0 configuration:
target:~$ ifconfig eth0 192.168.3.11 netmask 255.255.255.0 up
7.3. SD/MMC Card
The i.MX 93 supports a slot for Secure Digital Cards and MultiMedia Cards to be used as general-purpose block devices. These devices can be used in the same way as any other block device.
Warning
These kinds of devices are hot-pluggable. Nevertheless, you must ensure not to unplug the device while it is still mounted. This may result in data loss!
After inserting an SD/MMC card, the kernel will generate new device nodes in /dev. The full device can be reached via its /dev/mmcblk1 device node. SD/MMC card partitions will show up as:
/dev/mmcblk1p<Y>
<Y> counts as the partition number starting from 1 to the max count of partitions on this device. The partitions can be formatted with any kind of file system and also handled in a standard manner, e.g. the mount and umount command work as expected.
Tip
These partition device nodes will only be available if the card contains a valid partition table (”hard disk” like handling). If no partition table is present, the whole device can be used as a file system (”floppy” like handling). In this case, /dev/mmcblk1 must be used for formatting and mounting. The cards are always mounted as being writable.
DT configuration for the MMC (SD card slot) interface can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n216 or here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n201
DT configuration for the eMMC interface can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phycore-som.dtsi?h=v6.1.55_2.2.0-phy3#n194 or here:
7.4. eMMC Devices
PHYTEC modules like phyCORE-i.MX 93 is populated with an eMMC memory chip as the main storage. eMMC devices contain raw Multi-Level Cells (MLC) or Triple-Level Cells (TLC) combined with a memory controller that handles ECC and wear leveling. They are connected via an SD/MMC interface to the i.MX 93 and are represented as block devices in the Linux kernel like SD cards, flash drives, or hard disks.
The electric and protocol specifications are provided by JEDEC (https://www.jedec.org/standards-documents/technology-focus-areas/flash-memory-ssds-ufs-emmc/e-mmc). The eMMC manufacturer’s datasheet is relatively short and meant to be read together with the supported version of the JEDEC eMMC standard.
PHYTEC currently utilizes the eMMC chips with JEDEC Version 5.0 and 5.1
7.4.1. Extended CSD Register
eMMC devices have an extensive amount of extra information and settings that are available via the Extended CSD registers. For a detailed list of the registers, see manufacturer datasheets and the JEDEC standard.
In the Linux user space, you can query the registers:
target:~$ mmc extcsd read /dev/mmcblk0
You will see:
=============================================
Extended CSD rev 1.7 (MMC 5.0)
=============================================
Card Supported Command sets [S_CMD_SET: 0x01]
[...]
7.4.2. Enabling Background Operations (BKOPS)
In contrast to raw NAND Flash, an eMMC device contains a Flash Transfer Layer (FTL) that handles the wear leveling, block management, and ECC of the raw MLC or TLC. This requires some maintenance tasks (for example erasing unused blocks) that are performed regularly. These tasks are called Background Operations (BKOPS).
By default (depending on the chip), the background operations may or may not be executed periodically, impacting the worst-case read and write latency.
The JEDEC Standard has specified a method since version v4.41 that the host can issue BKOPS manually. See the JEDEC Standard chapter Background Operations and the description of registers BKOPS_EN (Reg: 163) and BKOPS_START (Reg: 164) in the eMMC datasheet for more details.
Meaning of Register BKOPS_EN (Reg: 163) Bit MANUAL_EN (Bit 0):
Value 0: The host does not support the manual trigger of BKOPS. Device write performance suffers.
Value 1: The host does support the manual trigger of BKOPS. It will issue BKOPS from time to time when it does not need the device.
The mechanism to issue background operations has been implemented in the Linux kernel since v3.7. You only have to enable BKOPS_EN on the eMMC device (see below for details).
The JEDEC standard v5.1 introduces a new automatic BKOPS feature. It frees the host to trigger the background operations regularly because the device starts BKOPS itself when it is idle (see the description of bit AUTO_EN in register BKOPS_EN (Reg: 163)).
To check whether BKOPS_EN is set, execute:
target:~$ mmc extcsd read /dev/mmcblk0 | grep BKOPS_EN
The output will be, for example:
Enable background operations handshake [BKOPS_EN]: 0x01 #OR Enable background operations handshake [BKOPS_EN]: 0x00
Where value 0x00 means BKOPS_EN is disabled and device write performance suffers. Where value 0x01 means BKOPS_EN is enabled and the host will issue background operations from time to time.
Enabling can be done with this command:
target:~$ target:~$ mmc --help [...] mmc bkops_en <auto|manual> <device> Enable the eMMC BKOPS feature on <device>. The auto (AUTO_EN) setting is only supported on eMMC 5.0 or newer. Setting auto won't have any effect if manual is set. NOTE! Setting manual (MANUAL_EN) is one-time programmable (unreversible) change.
To set the BKOPS_EN bit, execute:
target:~$ mmc bkops_en manual /dev/mmcblk0
To ensure that the new setting is taken over and the kernel triggers BKOPS by itself, shut down the system:
target:~$ poweroff
Tip
The BKOPS_EN bit is one-time programmable only. It cannot be reversed.
7.4.3. Reliable Write
There are two different Reliable Write options:
Reliable Write option for a whole eMMC device/partition.
Reliable Write for single write transactions.
Tip
Do not confuse eMMC partitions with partitions of a DOS, MBR, or GPT partition table (see the previous section).
The first Reliable Write option is mostly already enabled on the eMMCs mounted on the phyCORE-i.MX 93 SoMs. To check this on the running target:
target:~$ mmc extcsd read /dev/mmcblk0 | grep -A 5 WR_REL_SET
Write reliability setting register [WR_REL_SET]: 0x1f
user area: the device protects existing data if a power failure occurs during a write o
peration
partition 1: the device protects existing data if a power failure occurs during a write
operation
partition 2: the device protects existing data if a power failure occurs during a write
operation
partition 3: the device protects existing data if a power failure occurs during a write
operation
partition 4: the device protects existing data if a power failure occurs during a write
operation
--
Device supports writing EXT_CSD_WR_REL_SET
Device supports the enhanced def. of reliable write
Otherwise, it can be enabled with the mmc tool:
target:~$ mmc --help
[...]
mmc write_reliability set <-y|-n|-c> <partition> <device>
Enable write reliability per partition for the <device>.
Dry-run only unless -y or -c is passed.
Use -c if more partitioning settings are still to come.
NOTE! This is a one-time programmable (unreversible) change.
The second Reliable Write option is the configuration bit Reliable Write Request parameter (bit 31) in command CMD23. It has been used in the kernel since v3.0 by file systems, e.g. ext4 for the journal and user space applications such as fdisk for the partition table. In the Linux kernel source code, it is handled via the flag REQ_META.
Conclusion: ext4 file system with mount option data=journal should be safe against power cuts. The file system check can recover the file system after a power failure, but data that was written just before the power cut may be lost. In any case, a consistent state of the file system can be recovered. To ensure data consistency for the files of an application, the system functions fdatasync or fsync should be used in the application.
7.4.4. Resizing ext4 Root Filesystem
When flashing the sdcard image to eMMC the ext4 root partition is not extended to the end of the eMMC. parted can be used to expand the root partition. The example works for any block device such as eMMC, SD card, or hard disk.
Get the current device size:
target:~$ parted /dev/mmcblk0 print
The output looks like this:
Model: MMC Q2J55L (sd/mmc) Disk /dev/mmcblk0: 7617MB Sect[ 1799.850385] mmcblk0: p1 p2 or size (logical/physical): 512B/512B Partition Table: msdos Disk Flags: Number Start End Size Type File system Flags 1 4194kB 72.4MB 68.2MB primary fat16 boot, lba 2 72.4MB 537MB 465MB primary ext4
Use parted to resize the root partition to the max size of the device:
target:~$ parted /dev/mmcblk0 resizepart 2 100% Information: You may need to update /etc/fstab. target:~$ parted /dev/mmcblk0 print Model: MMC Q2J55L (sd/mmc) Disk /dev/mmcblk0: 7617MB Sector size (logical/physical): 512[ 1974.191657] mmcblk0: p1 p2 B/512B Partition Table: msdos Disk Flags: Number Start End Size Type File system Flags 1 4194kB 72.4MB 68.2MB primary fat16 boot, lba 2 72.4MB 7617MB 7545MB primary ext4
Resize the filesystem to a new partition size:
target:~$ resize2fs /dev/mmcblk0p2 resize2fs 1.46.1 (9-Feb-2021) Filesystem at /dev/mmcblk0p2 is mounted on /; on-line resizing required [ 131.609512] EXT4-fs (mmcblk0p2): resizing filesystem from 454136 to 7367680 blocks old_desc_blocks = 4, new_desc_blocks = 57 [ 131.970278] EXT4-fs (mmcblk0p2): resized filesystem to 7367680 The filesystem on /dev/mmcblk0p2 is now 7367680 (1k) blocks long
Increasing the filesystem size can be done while it is mounted. But you can also boot the board from an SD card and then resize the file system on the eMMC partition while it is not mounted.
7.4.5. Enable pseudo-SLC Mode
eMMC devices use MLC or TLC (https://en.wikipedia.org/wiki/Multi-level_cell) to store the data. Compared with SLC used in NAND Flash, MLC or TLC have lower reliability and a higher error rate at lower costs.
If you prefer reliability over storage capacity, you can enable the pseudo-SLC mode or SLC mode. The method used here employs the enhanced attribute, described in the JEDEC standard, which can be set for continuous regions of the device. The JEDEC standard does not specify the implementation details and the guarantees of the enhanced attribute. This is left to the chipmaker. For the Micron chips, the enhanced attribute increases the reliability but also halves the capacity.
Warning
When enabling the enhanced attribute on the device, all data will be lost.
The following sequence shows how to enable the enhanced attribute.
First obtain the current size of the eMMC device with:
target:~$ parted -m /dev/mmcblk0 unit B print
You will receive:
BYT; /dev/mmcblk0:63652757504B:sd/mmc:512:512:unknown:MMC S0J58X:;
As you can see this device has 63652757504 Byte = 60704 MiB.
To get the maximum size of the device after pseudo-SLC is enabled use:
target:~$ mmc extcsd read /dev/mmcblk0 | grep ENH_SIZE_MULT -A 1
which shows, for example:
Max Enhanced Area Size [MAX_ENH_SIZE_MULT]: 0x000764 i.e. 3719168 KiB -- Enhanced User Data Area Size [ENH_SIZE_MULT]: 0x000000 i.e. 0 KiB
Here the maximum size is 3719168 KiB = 3632 MiB.
Now, you can set enhanced attribute for the whole device, e.g. 3719168 KiB, by typing:
target:~$ mmc enh_area set -y 0 3719168 /dev/mmcblk0
You will get:
Done setting ENH_USR area on /dev/mmcblk0 setting OTP PARTITION_SETTING_COMPLETED! Setting OTP PARTITION_SETTING_COMPLETED on /dev/mmcblk0 SUCCESS Device power cycle needed for settings to take effect. Confirm that PARTITION_SETTING_COMPLETED bit is set using 'extcsd read' after power cycle
To ensure that the new setting has taken over, shut down the system:
target:~$ poweroffand perform a power cycle. It is recommended that you verify the settings now.
First, check the value of ENH_SIZE_MULT which must be 3719168 KiB:
target:~$ mmc extcsd read /dev/mmcblk0 | grep ENH_SIZE_MULT -A 1
You should receive:
Max Enhanced Area Size [MAX_ENH_SIZE_MULT]: 0x000764 i.e. 3719168 KiB -- Enhanced User Data Area Size [ENH_SIZE_MULT]: 0x000764 i.e. 3719168 KiB
Finally, check the size of the device:
target:~$ parted -m /dev/mmcblk0 unit B print BYT; /dev/mmcblk0:31742492672B:sd/mmc:512:512:unknown:MMC S0J58X:;
7.4.6. Erasing the Device
It is possible to erase the eMMC device directly rather than overwriting it with zeros. The eMMC block management algorithm will erase the underlying MLC or TLC or mark these blocks as discard. The data on the device is lost and will be read back as zeros.
After booting from SD Card execute:
target:~$ blkdiscard -f --secure /dev/mmcblk0
The option –secure ensures that the command waits until the eMMC device has erased all blocks. The -f (force) option disables all checking before erasing and it is needed when the eMMC device contains existing partitions with data.
Tip
target:~$ dd if=/dev/zero of=/dev/mmcblk0 conv=fsync
also destroys all information on the device, but this command is bad for wear leveling and takes much longer!
7.4.7. eMMC Boot Partitions
An eMMC device contains four different hardware partitions: user, boot1, boot2, and rpmb.
The user partition is called the User Data Area in the JEDEC standard and is the main storage partition. The partitions boot1 and boot2 can be used to host the bootloader and are more reliable. Which partition the i.MX 93 uses to load the bootloader is controlled by the boot configuration of the eMMC device. The partition rpmb is a small partition and can only be accessed via a trusted mechanism.
Furthermore, the user partition can be divided into four user-defined General Purpose Area Partitions. An explanation of this feature exceeds the scope of this document. For further information, see the JEDEC Standard Chapter 7.2 Partition Management.
Tip
Do not confuse eMMC partitions with partitions of a DOS, MBR, or GPT partition table.
The current PHYTEC BSP does not use the extra partitioning feature of eMMC devices. The U-Boot is flashed at the beginning of the user partition. The U-Boot environment is placed at a fixed location after the U-Boot. An MBR partition table is used to create two partitions, a FAT32 boot, and ext4 rootfs partition. They are located right after the U-Boot and the U-Boot environment. The FAT32 boot partition contains the kernel and device tree.
With eMMC flash storage it is possible to use the dedicated boot partitions for redundantly storing the bootloader. The U-Boot environment still resides in the user area before the first partition. The user area also still contains the bootloader which the image first shipped during its initialization process. Below is an example, to flash the bootloader to one of the two boot partitions and switch the boot device via userspace commands.
7.4.8. Via userspace Commands
On the host, run:
host:~$ scp imx-boot root@192.168.3.11:/tmp/
The partitions boot1 and boot2 are read-only by default. To write to them from user space, you have to disable force_ro in the sysfs.
To manually write the bootloader to the eMMC boot partitions, first disable the write protection:
target:~$ echo 0 > /sys/block/mmcblk0boot0/force_ro
target:~$ echo 0 > /sys/block/mmcblk0boot1/force_ro
Write the bootloader to the eMMC boot partitions:
target:~$ dd if=/tmp/imx-boot of=/dev/mmcblk0boot0
target:~$ dd if=/tmp/imx-boot of=/dev/mmcblk0boot1
The following table is for the offset of the i.MX 93 SoC:
SoC |
Offset User Area |
Offset Boot Partition |
eMMC Device |
Bootloader Filename |
|---|---|---|---|---|
i.MX 93 |
32 kiB |
0 kiB |
/dev/mmcblk0 |
imx-boot |
After that set the boot partition from user space using the mmc tool:
(for ‘boot0’) :
target:~$ mmc bootpart enable 1 0 /dev/mmcblk0
(for ‘boot1’) :
target:~$ mmc bootpart enable 2 0 /dev/mmcblk0
To disable booting from the eMMC boot partitions simply enter the following command:
target:~$ mmc bootpart enable 0 0 /dev/mmcblk0
To choose back to the user area u-boot environment:
target:~$ mmc bootpart enable 7 0 /dev/mmcblk0
7.4.9. Resizing ext4 Root Filesystem
fdisk can be used to expand the root filesystem. The example works for any block device such as eMMC, SD Card, or hard disk.
Get the current device size:
target:~$ fdisk -l /dev/mmcblk0
The output looks like:
Disk /dev/mmcblk0: 7264 MB, 7616856064 bytes, 14876672 sectors 116224 cylinders, 4 heads, 32 sectors/track Units: sectors of 1 * 512 = 512 bytes Device Boot StartCHS EndCHS StartLBA EndLBA Sectors Size Id Type /dev/mmcblk0p1 * 128,0,1 1023,3,32 16384 140779 124396 60.7M c Win95 FAT32 (LBA) /dev/mmcblk0p2 1023,3,32 1023,3,32 141312 2192013 2050702 1001M 83 Linux
Use fdisk to delete and create a partition with a max size of the device:
target:~$ fdisk /dev/mmcblk0 The number of cylinders for this disk is set to 116224. There is nothing wrong with that, but this is larger than 1024, and could in certain setups cause problems with: 1) software that runs at boot time (e.g., old versions of LILO) 2) booting and partitioning software from other OSs (e.g., DOS FDISK, OS/2 FDISK) Command (m for help): p Disk /dev/mmcblk0: 7264 MB, 7616856064 bytes, 14876672 sectors 116224 cylinders, 4 heads, 32 sectors/track Units: sectors of 1 * 512 = 512 bytes Device Boot StartCHS EndCHS StartLBA EndLBA Sectors Size Id Type /dev/mmcblk0p1 * 128,0,1 1023,3,32 16384 140779 124396 60,7M c Win95 FAT32 (LBA) /dev/mmcblk0p2 1023,3,32 1023,3,32 141312 2192013 2050702 1001M 83 Linux Command (m for help): d Partition number (1-4): 2 Command (m for help): p Disk /dev/mmcblk0: 7264 MB, 7616856064 bytes, 14876672 sectors 116224 cylinders, 4 heads, 32 sectors/track Units: sectors of 1 * 512 = 512 bytes Device Boot StartCHS EndCHS StartLBA EndLBA Sectors Size Id Type /dev/mmcblk0p1 * 128,0,1 1023,3,32 16384 140779 124396 60.7M c Win95 FAT32 (LBA) Command (m for help): n Partition type p primary partition (1-4) e extended p Partition number (1-4): 2 First sector (32-14876671, default 32): 141456 Last sector or +size{,K,M,G,T} (141456-14876671, default 14876671): Using default value 14876671 Command (m for help): p Disk /dev/mmcblk0: 7264 MB, 7616856064 bytes, 14876672 sectors 116224 cylinders, 4 heads, 32 sectors/track Units: sectors of 1 * 512 = 512 bytes Device Boot StartCHS EndCHS StartLBA EndLBA Sectors Size Id Type /dev/mmcblk0p1 * 128,0,1 1023,3,32 16384 140779 124396 60.7M c Win95 FAT32 (LBA) /dev/mmcblk0p2 1023,3,32 1023,3,32 141456 14876671 14735216 7194M 83 Linux
Increasing the file system size can be done while it is mounted. An online resizing operation is performed. But you can also boot the board from an SD card and then resize the file system on the eMMC partition while it is not mounted. Furthermore, the board has to be rebooted so that the new partition table will be read.
7.5. GPIOs
The phyBOARD-Segin/Nash i.MX 93 doesn’t have a set of pins especially dedicated for user I/Os since all GPIOs are used by kernel device drivers or used for a specific purpose. The processor has organized its GPIOs into five banks of 32 GPIOs each (GPIO1 – GPIO4) GPIOs. gpiochip0, gpiochip32, gpiochip64 and gpiochip96 are the sysfs representation of these internal i.MX 93 GPIO banks GPIO1 – GPIO4.
The GPIOs are identified as GPIO<X>_<Y> (e.g. GPIO4_07). <X> identifies the GPIO bank and counts from 1 to 4, while <Y> stands for the GPIO within the bank. <Y> is being counted from 0 to 31 (32 GPIOs on each bank).
By contrast, the Linux kernel uses a single integer to enumerate all available GPIOs in the system. The formula to calculate the right number is:
Linux GPIO number: <N> = (<X> - 1) * 32 + <Y>
Accessing GPIOs from userspace will be done using the libgpiod. It provides a library and tools for interacting with the Linux GPIO character device. Examples of some usages of various tools:
Detecting the gpiochips on the chip:
target:~$ gpiodetect gpiochip0 [43810080.gpio] (32 lines) gpiochip1 [43820080.gpio] (32 lines) gpiochip2 [43830080.gpio] (32 lines) gpiochip3 [47400080.gpio] (32 lines)
Note
Order of GPIOchips in i.MX 93 Application Processor Reference Manual and
in Linux kernel differ!
GPIOchip address |
Linux |
Reference Manual |
0x43810080 |
gpiochip0 |
gpiochip2 |
0x43820080 |
gpiochip1 |
gpiochip3 |
0x43830080 |
gpiochip2 |
gpiochip4 |
0x47400080 |
gpiochip3 |
gpiochip1 |
Show detailed information about the gpiochips. Like their names, consumers, direction, active state, and additional flags:
target:~$ gpioinfo gpiochip0
Read the value of a GPIO (e.g GPIO 3 from chip0):
target:~$ gpioget gpiochip0 3
Set the value of GPIO 3 on chip0 to 0 and exit tool:
target:~$ gpioset --mode=exit gpiochip0 3=0
Help text of gpioset shows possible options:
target:~$ gpioset --help Usage: gpioset [OPTIONS] <chip name/number> <offset1>=<value1> <offset2>=<value2> ... Set GPIO line values of a GPIO chip Options: -h, --help: display this message and exit -v, --version: display the version and exit -l, --active-low: set the line active state to low -m, --mode=[exit|wait|time|signal] (defaults to 'exit'): tell the program what to do after setting values -s, --sec=SEC: specify the number of seconds to wait (only valid for --mode=time) -u, --usec=USEC: specify the number of microseconds to wait (only valid for --mode=time) -b, --background: after setting values: detach from the controlling terminal Modes: exit: set values and exit immediately wait: set values and wait for user to press ENTER time: set values and sleep for a specified amount of time signal: set values and wait for SIGINT or SIGTERM Note: the state of a GPIO line controlled over the character device reverts to default when the last process referencing the file descriptor representing the device file exits. This means that it's wrong to run gpioset, have it exit and expect the line to continue being driven high or low. It may happen if given pin is floating but it must be interpreted as undefined behavior.
Warning
Some of the user IOs are used for special functions. Before using a user IO, refer to the schematic or the hardware manual of your board to ensure that it is not already in use.
7.5.1. GPIOs via sysfs
Warning
Accessing gpios via sysfs is deprecated and we encourage to use libgpiod instead.
Support to access GPIOs via sysfs is not enabled by default any more. It is only possible with manually enabling CONFIG_GPIO_SYSFS in the kernel configuration. To make CONFIG_GPIO_SYSFS visible in menuconfig the option CONFIG_EXPERT has to be enabled first.
You can also add this option for example to the imx9_phytec_distro.config config fragment in the linux kernel sources under arch/arm64/configs
..
CONFIG_GPIO_SYSFS=y
..
7.6. ADC
The PHYTEC i.MX 93 include general purpose Analog-to-Digital Converters (ADC) which can be used for interfacing analog sensors.
Reading the ADC values can be done through sysfs:
target:~$ cat /sys/bus/iio/devices/iio:deviceX/in_voltageY_raw
On phyBOARD-Nash the ADC lines are accessible on X16 expansion connector:
ADC input |
X16 pin |
|---|---|
ADC_IN0 |
47 |
ADC_IN2 |
49 |
7.7. LEDs
If any LEDs are connected to GPIOs, you have the possibility to access them by a
special LED driver interface instead of the general GPIO interface (section
GPIOs). You will then access them using /sys/class/leds/ instead
of /sys/class/gpio/. The maximum brightness of the LEDs can be read from
the max_brightness file. The brightness file will set the brightness of the LED
(taking a value from 0 up to max_brightness). Most LEDs do not have hardware
brightness support and will just be turned on by all non-zero brightness
settings.
Below is a simple example.
To get all available LEDs, type:
target:~$ ls /sys/class/leds
green:heartbeat@ mmc0::@ mmc1::@ yellow:@
Here the LEDs green:heartbeat is on the phyCORE-i.MX93. If you are using
phyBOARD-Segin there is also yellow LED which is populated on the
PEB-EVAL-01.
To toggle the LEDs ON:
target:~$ echo 1 > /sys/class/leds/green\:heartbeat/brightness
To toggle OFF:
target:~$ echo 0 > /sys/class/leds/green\:heartbeat/brightness
Device tree configuration for the User I/O configuration can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin-peb-eval-01.dtso?h=v6.1.55_2.2.0-phy3#n33
7.8. I²C Bus
The i.MX 93 contains several Multimaster fast-mode I²C modules. PHYTEC boards provide plenty of different I²C devices connected to the I²C modules of the i.MX 93. This section describes the basic device usage and its DT representation of some I²C devices integrated into our phyBOARD-Segin/Nash i.MX 93.
The device tree node for i2c contains settings such as clock-frequency to set the bus frequency and the pin control settings including scl-gpios and sda-gpios which are alternate pin configurations used for bus recovery.
General I²C1 bus configuration (e.g. imx93-phycore-som.dtsi): https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phycore-som.dtsi?h=v6.1.55_2.2.0-phy3#n88
General I²C2 bus configuration for imx93-phyboard-segin.dts: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n155 or for imx93-phyboard-nash.dts: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n113
7.9. EEPROM
There are two different I2C EEPROM flashes populated on phyCORE-i.MX93 SoM and on the phyBOARD-Segin/Nash i.MX 93. For now only the one on the phyCORE-i.MX93 is enabled, and it is used for board detection.
7.9.1. I2C EEPROM on phyCORE-i.MX93
The I2C EEPROM on the phyCORE-i.MX93 SoM has its memory divided into two parts.
normal area (size: 4096 bytes, bus: I2C-2, addr: 0x50)
ID page (size: 32 bytes, bus: I2C-2, addr: 0x58)
It is possible to read and write from the device populated:
target:~$ hexdump -C /sys/class/i2c-dev/i2c-2/device/2-0058/eeprom
To read and print the first 1024 bytes of the EEPROM as a hex number, execute:
target:~$ dd if=/sys/class/i2c-dev/i2c-2/device/2-0050/eeprom bs=1 count=1024 | od -x
To fill the whole EEPROM (ID page) with zeros we first need to disable the EEPROM write protection, use:
target:~$ gpioset 2 21=0
Then the EEPROM can be written to:
target:~$ dd if=/dev/zero of=/sys/class/i2c-dev/i2c-2/device/2-0058/eeprom bs=32 count=1
Warning
The first 256 bytes of the normal EEPROM area (bus: I2C-2 addr: 0x50) are reserved and should not be overwritten! (See below)
7.9.2. EEPROM SoM Detection
PHYTEC uses first 256 bytes in EEPROM normal area to store information about the SoM. This includes PCB revision and mounting options.
The EEPROM data is read at a really early stage during startup. It is used to select the correct RAM configuration. This makes it possible to use the same bootloader image for different RAM sizes and choose the correct DTS overlays automatically.
If the first 265 bytes of the normal area are deleted, the bootloader will fall back to the phyCORE-i.MX93 Kit RAM setup, which is 1GiB RAM.
Warning
Data in the first 265 bytes of the normal EEPROM area (bus: I2C-2 addr: 0x50) shouldn’t be erased or corrupted! This might influence the behavior of the bootloader. The board might not boot correctly anymore.
7.9.3. Rescue EEPROM Data
The hardware introspection data is pre-written on the EEPROM data spaces. If you have accidentally deleted or overwritten the HW data, you could contact our support!
DT representation, e.g. in phyCORE-i.MX 93 file can be found in our PHYTEC git: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phycore-som.dtsi?h=v6.1.55_2.2.0-phy3#n172
7.10. RTC
RTCs can be accessed via /dev/rtc*. Because PHYTEC boards have often more than
one RTC, there might be more than one RTC device file.
To find the name of the RTC device, you can read its sysfs entry with:
target:~$ cat /sys/class/rtc/rtc*/name
You will get, for example:
rtc-rv3028 0-0052 snvs_rtc 30370000.snvs:snvs-rtc-lp
Tip
This will list all RTCs including the non-I²C RTCs. Linux assigns RTC device IDs based on the device tree/aliases entries if present.
Date and time can be manipulated with the hwclock tool and the date command.
To show the current date and time set on the target:
target:~$ date
Thu Jan 1 00:01:26 UTC 1970
Change the date and time with the date command. The date command sets the time with the following syntax “YYYY-MM-DD hh:mm:ss (+|-)hh:mm”:
target:~$ date -s "2022-03-02 11:15:00 +0100"
Wed Mar 2 10:15:00 UTC 2022
Note
Your timezone (in this example +0100) may vary.
Using the date command does not change the time and date of the RTC, so if we
were to restart the target those changes would be discarded. To write to the RTC
we need to use the hwclock command. Write the current date and time (set
with the date command) to the RTC using the hwclock tool and reboot the
target to check if the changes were applied to the RTC:
target:~$ hwclock -w
target:~$ reboot
.
.
.
target:~$ date
Wed Mar 2 10:34:06 UTC 2022
To set the time and date from the RTC use:
target:~$ date
Thu Jan 1 01:00:02 UTC 1970
target:~$ hwclock -s
target:~$ date
Wed Mar 2 10:45:01 UTC 2022
7.10.1. RTC Wakealarm
It is possible to issue an interrupt from the RTC to wake up the system. The format uses the Unix epoch time, which is the number of seconds since UTC midnight on 1 January 1970. To wake up the system after 4 minutes from suspend to ram state, type:
target:~$ echo "+240" > /sys/class/rtc/rtc0/wakealarm
target:~$ echo mem > /sys/power/state
Note
Internally the wake alarm time will be rounded up to the next minute since the alarm function doesn’t support seconds.
7.10.2. RTC Parameters
RTCs have a few abilities which can be read/set with the help of hwclock
tool.
We can check RTC supported features with:
target:~$ hwclock --param-get features The RTC parameter 0x0 is set to 0x71.
What this value means is encoded in kernel, each set bit translates to:
#define RTC_FEATURE_ALARM 0 #define RTC_FEATURE_ALARM_RES_MINUTE 1 #define RTC_FEATURE_NEED_WEEK_DAY 2 #define RTC_FEATURE_ALARM_RES_2S 3 #define RTC_FEATURE_UPDATE_INTERRUPT 4 #define RTC_FEATURE_CORRECTION 5 #define RTC_FEATURE_BACKUP_SWITCH_MODE 6 #define RTC_FEATURE_ALARM_WAKEUP_ONLY 7 #define RTC_FEATURE_CNT 8
We can check RTC BSM (Backup Switchover Mode) with:
target:~$ hwclock --param-get bsm The RTC parameter 0x2 is set to 0x1.
We can set RTC BSM with:
target:~$ hwclock --param-set bsm=0x2 The RTC parameter 0x2 will be set to 0x2.
What BSM values mean translates to these values:
#define RTC_BSM_DISABLED 0 #define RTC_BSM_DIRECT 1 #define RTC_BSM_LEVEL 2 #define RTC_BSM_STANDBY 3
Tip
You should set BSM mode to DSM or LSM for RTC to switch to backup power source when the initial power source is not available. Check RV-3028 RTC datasheet to read what LSM (Level Switching Mode) and DSM (Direct Switching Mode) actually mean.
DT representation for I²C RTCs: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n173 or https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n122
7.11. USB Host Controller
The USB controller of the i.MX 93 SoC provides a low-cost connectivity solution for numerous consumer portable devices by providing a mechanism for data transfer between USB devices with a line/bus speed of up to 480 Mbps (HighSpeed ‘HS’). The USB subsystem has two independent USB controller cores. Both cores are capable of acting as a USB peripheral device or a USB host, but on the phyBOARD-Segin/Nash i.MX 93 one of them is used as a host-only port (USB-A connector).
The unified BSP includes support for mass storage devices and keyboards. Other
USB-related device drivers must be enabled in the kernel configuration on
demand. Due to udev, all mass storage devices connected get unique IDs and can
be found in /dev/disk/by-id. These IDs can be used in /etc/fstab to mount the
different USB memory devices in different ways.
The OTG port provides an additional pin for over-current protection, which is not used on the phyBOARD-Segin/Nash i.MX 93. Since it’s not used, the driver part is also disabled from within the device tree. In case this pin is used, activate this over-current in the device tree and set the correct polarity (active high/low) according to the device specification. For the correct setup, please refer to the Kernel documentation under Linux/Documentation/devicetree/bindings/usb/ci-hdrc-usb2.txt.
DT representation for USB Host: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n190 or https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n180
7.12. RS232/RS485
The phyBOARD-Nash i.MX 93 SoC provides one RS232/RS485 serial port.
Warning
RS232 with HW flow control and RS485 are not working due to HW bug on the phyBOARD-Nash PCB revision 1616.0
7.12.1. RS232
Display the current settings of a terminal in a human-readable format:
target:~$ stty -a
Configuration of the UART interface can be done with stty. For example:
target:~$ stty -F /dev/ttyLP6 115200 crtscts raw -echo
With a simple echo and cat, basic communication can be tested. Example:
target:~$ echo 123 > /dev/ttyLP6
host:~$ cat /dev/ttyUSB2
The host should print out “123”.
7.12.2. RS485
Hint
Remember to use bus termination resistors of 120 Ohm at each end of the bus, when using longer cables.
For easy testing, look at the linux-serial-test. This tool is called the IOCTL for RS485 and sends a constant stream of data.
target:~$ linux-serial-test -p /dev/ttyLP6 -b 115200 --rs485 0
More information about the linux-serial-test tool and its parameters can be found here: linux-serial-test
The linux-serial-test will automatically set ioctls, but they can also be set manually with rs485conf.
You can show the current config with:
target:~$ rs485conf /dev/ttymxc1
You can show all options with:
target:~$ rs485conf /dev/ttymxc1 -h
Documentation for calling the IOCTL within c-code is described in the Linux kernel documentation: https://www.kernel.org/doc/Documentation/serial/serial-rs485.txt
The device tree representation for RS232 and RS485: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n173
7.13. CAN FD
The phyBOARD-Segin/Nash i.MX 93 has one flexCAN interface supporting CAN FD. They are supported by the Linux standard CAN framework which builds upon the Linux network layer. Using this framework, the CAN interfaces behave like an ordinary Linux network device, with some additional features special to CAN. More information can be found in the Linux Kernel documentation: https://www.kernel.org/doc/html/latest/networking/can.html
Use:
target:~$ ip link
to see the state of the interfaces. The CAN interface should show up as can0.
To get information on can0, such as bit rate and error counters, type:
target:~$ ip -d -s link show can0 4: can0: <NOARP,UP,LOWER_UP,ECHO> mtu 16 qdisc pfifo_fast state UP mode DEFAULT group default qlen 10 link/can promiscuity 0 allmulti 0 minmtu 0 maxmtu 0 can state ERROR-ACTIVE (berr-counter tx 0 rx 0) restart-ms 0 bitrate 500000 sample-point 0.875 tq 25 prop-seg 37 phase-seg1 32 phase-seg2 10 sjw 1 brp 1 flexcan: tseg1 2..96 tseg2 2..32 sjw 1..16 brp 1..1024 brp_inc 1 flexcan: dtseg1 2..39 dtseg2 2..8 dsjw 1..4 dbrp 1..1024 dbrp_inc 1 clock 40000000 re-started bus-errors arbit-lost error-warn error-pass bus-off 0 0 0 0 0 0 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536 parentbus platform parentdev 443a0000.can RX: bytes packets errors dropped missed mcast 0 0 0 0 0 0 TX: bytes packets errors dropped carrier collsns 0 0 0 0 0 0
The output contains a standard set of parameters also shown for Ethernet interfaces, so not all of these are necessarily relevant for CAN (for example the MAC address). The following output parameters contain useful information:
can0 |
Interface Name |
|---|---|
NOARP |
CAN cannot use ARP protocol |
MTU |
Maximum Transfer Unit |
RX packets |
Number of Received Packets |
TX packets |
Number of Transmitted Packets |
RX bytes |
Number of Received Bytes |
TX bytes |
Number of Transmitted Bytes |
errors… |
Bus Error Statistics |
The CAN configuration is done in the systemd configuration
file /lib/systemd/network/can0.network. For a persistent change of (as an
example, the default bitrates), change the configuration in the BSP
under ./meta-ampliphy/recipes-core/systemd/systemd-conf/can0.network in
the root filesystem and rebuild the root filesystem.
[Match]
Name=can0
[Can]
BitRate=500000
The bitrate can also be changed manually, for example, to make use of the flexible bitrate:
target:~$ ip link set can0 down
target:~$ ip link set can0 txqueuelen 10 up type can bitrate 500000 sample-point 0.75 dbitrate 4000000 dsample-point 0.8 fd on
You can send messages with cansend or receive messages with candump:
target:~$ cansend can0 123#45.67
target:~$ candump can0
To generate random CAN traffic for testing purposes, use cangen:
target:~$ cangen
cansend --help and candump --help provide help messages for further information
on options and usage.
Device Tree CAN configuration of imx93-phyboard-segin.dts: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n147 or https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n105
7.14. Audio on phyBOARD-Segin
On phyBOARD-Segin i.MX 93 the TI TLV320AIC3007 audio codec is used. It uses I2S for data transmission and I2C for codec control. The audio signals available are:
Stereo LINE IN,
Stereo LINE OUT,
Output where D-Class 1W speaker can be connected
To check if your soundcard driver is loaded correctly and what the device is called, type for playback devices:
target:~$ aplay -L
Or type for recording devices:
target:~$ arecord -L
7.14.1. Alsamixer
To inspect the capabilities of your soundcard, call:
target:~$ alsamixer
You should see a lot of options as the audio-IC has many features you can experiment with. It might be better to open alsamixer via ssh instead of the serial console, as the console graphical effects are better. You have either mono or stereo gain controls for all mix points. “MM” means the feature is muted (both output, left & right), which can be toggled by hitting ‘m’. You can also toggle by hitting ‘<’ for left and ‘>’ for right output. With the tab key, you can switch between controls for playback and recording.
7.14.2. Restore default volumes
There are some default settings stored in /var/lib/alsa/asound.state.
You can save your current alsa settings with:
target:~$ alsactl --file </path/to/filename> store
You can restore saved alsa settings with:
target:~$ alsactl --file </path/to/filename> restore
7.14.3. Playback
Run speaker-test to check playback availability:
target:~$ speaker-test -c 2 -t wav
To playback simple audio streams, you can use aplay. For example to play the ALSA test sounds:
target:~$ aplay /usr/share/sounds/alsa/*
To playback other formats like mp3 for example, you can use Gstreamer:
target:~$ gst-launch-1.0 playbin uri=file:/path/to/file.mp3
If Speaker volume it too low you can increase its volume with (values 0-3):
target:~$ amixer -c 0 sset Class-D 3
Hint
Speaker output is only mono so when stereo track is played only left channel will be played by speaker.
7.14.4. Capture
arecord is a command-line tool for capturing audio streams which use Line In
as the default input source.
target:~$ arecord -t wav -c 2 -r 44100 -f S16_LE test.wav
Hint
Since playback and capture share hardware interfaces, it is not possible to use different sampling rates and formats for simultaneous playback and capture operations.
Device Tree Audio configuration: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin.dts?h=v6.1.55_2.2.0-phy3#n62
7.15. Audio on phyBOARD-Nash
Warning
Due to HW bug Audio is broken on phyBOARD-Nash i.MX 93 PCB revision: 1616.0
To use audio with phyBOARD-Nash an additional adapter for the Audio/Video connector is needed. The PEB-AV-10 (1531.1 revision) can be bought separately to the Kit. PEB-AV-10 is populated with a TI TLV320AIC3007 audio codec. Audio support is done via the I2S interface and controlled via I2C.
There is a 3.5mm headset jack with OMTP standard and an 8-pin header to connect audio devices with the AV-Connector. The 8-pin header contains a mono speaker, headphones, and line-in signals.
To check if your soundcard driver is loaded correctly and what the device is called, type for playback devices:
target:~$ aplay -L
Or type for recording devices:
target:~$ arecord -L
7.15.1. Alsamixer
To inspect the capabilities of your soundcard, call:
target:~$ alsamixer
You should see a lot of options as the audio-IC has many features you can experiment with. It might be better to open alsamixer via ssh instead of the serial console, as the console graphical effects are better. You have either mono or stereo gain controls for all mix points. “MM” means the feature is muted (both output, left & right), which can be toggled by hitting ‘m’. You can also toggle by hitting ‘<’ for left and ‘>’ for right output. With the tab key, you can switch between controls for playback and recording.
7.15.2. Restore default volumes
There are some default settings stored in /var/lib/alsa/asound.state.
You can save your current alsa settings with:
target:~$ alsactl --file </path/to/filename> store
You can restore saved alsa settings with:
target:~$ alsactl --file </path/to/filename> restore
7.15.3. ALSA configuration
Our BSP comes with a ALSA configuration file /etc/asound.conf.
The ALSA configuration file can be edited as desired or deleted since it is not required for ALSA to work properly.
target:~$ vi /etc/asound.conf
To set PEB-AV-10 as output, set playback.pcm from “dummy” to “pebav10”:
[...]
pcm.asymed {
type asym
playback.pcm "pebav10"
capture.pcm "dsnoop"
}
[...]
If the sound is not audible change playback devices to the software volume control playback devices, set playback.pcm to the respective softvol playback device e.g. “softvol_pebav10”. Use alsamixer controls to vary the volume levels.
[...]
pcm.asymed {
type asym
playback.pcm "softvol_pebav10"
capture.pcm "dsnoop"
}
[...]
7.15.4. Pulseaudio Configuration
For applications using Pulseaudio, check for available sinks:
target:~$ pactl list short sinks
To select the output device, type:
target:~$ pactl set-default-sink <sink_number>
7.15.5. Playback
Run speaker-test to check playback availability:
target:~$ speaker-test -c 2 -t wav
To playback simple audio streams, you can use aplay. For example to play the ALSA test sounds:
target:~$ aplay /usr/share/sounds/alsa/*
To playback other formats like mp3 for example, you can use Gstreamer:
target:~$ gst-launch-1.0 playbin uri=file:/path/to/file.mp3
7.15.6. Capture
arecord is a command-line tool for capturing audio streams which use Line In as
the default input source. To select a different audio source you can
use alsamixer. For example, switch on Right PGA Mixer Mic3R and Left PGA Mixer
Mic3R in order to capture the audio from the microphone input of the
TLV320-Codec using the 3.5mm jack.
target:~$ amixer -c "sndpebav10" sset 'Left PGA Mixer Mic3R' on
target:~$ amixer -c "sndpebav10" sset 'Right PGA Mixer Mic3R' on
target:~$ arecord -t wav -c 2 -r 44100 -f S16_LE test.wav
Hint
Since playback and capture share hardware interfaces, it is not possible to use different sampling rates and formats for simultaneous playback and capture operations.
Device Tree Audio configuration: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash-peb-av-010.dtso?h=v6.1.55_2.2.0-phy3#n57
7.16. Video
7.16.1. Videos with Gstreamer
One example video is installed by default in the BSP at /usr/share/qtphy/videos/. Start the video playback with one of these commands:
target:~$ gst-launch-1.0 playbin uri=file:///usr/share/qtphy/videos/caminandes_3_llamigos_720p_vp9.webm
Or:
target:~$ gst-launch-1.0 -v filesrc location=/usr/share/qtphy/videos/caminandes_3_llamigos_720p_vp9.webm ! decodebin name=decoder decoder. ! videoconvert ! waylandsink
Or:
target:~$ gst-play-1.0 /usr/share/qtphy/videos/caminandes_3_llamigos_720p_vp9.webm --videosink waylandsink
7.17. Display
The phyBOARD-Segin i.MX 93 supports PEB-AV-02 with 7’’ edt,etm0700g0edh6
parallel display with capacitive touchscreen. Overlay for said display is
enabled in BOOT/bootenv.txt by default!
The phyBOARD-Nash i.MX 93 needs additional adapter to support 10’’
edt,etml1010g3dra LVDS display with capacitive touchscreen. The PEB-AV-10
(1531.1 revision) can be bought separately to the Kit. Overlay for said display
is enabled in BOOT/bootenv.txt by default!
7.17.1. Qt Demo
With the phytec-qt6demo-image, Weston starts during boot. Our Qt6 demo application named
“qtphy” can be stopped with:
target:~$ systemctl stop qtphy
To start the demo again, run:
target:~$ systemctl start qtphy
To disable autostart of the demo, run:
target:~$ systemctl disable qtphy
To enable autostart of the demo, run:
target:~$ systemctl enable qtphy
Weston can be stopped with:
target:~$ systemctl stop weston
Note
The Qt demo must be closed before Weston can be closed.
7.17.2. Backlight Control
If a display is connected to the PHYTEC board, you can control its backlight with the Linux kernel sysfs interface. All available backlight devices in the system can be found in the folder /sys/class/backlight. Reading the appropriate files and writing to them allows you to control the backlight.
Note
Some boards with multiple display connectors might have multiple backlight controls in /sys/class/backlight. For example: backlight0 and backlight1
To get, for example, the maximum brightness level (max_brightness) execute:
target:~$ cat /sys/class/backlight/backlight/max_brightness
Valid brightness values are 0 to <max_brightness>.
To obtain the current brightness level, type:
target:~$ cat /sys/class/backlight/backlight/brightness
Write to the file brightness to change the brightness:
target:~$ echo 0 > /sys/class/backlight/backlight/brightness
turns the backlight off for example.
For documentation of all files, see https://www.kernel.org/doc/Documentation/ABI/stable/sysfs-class-backlight.
The device tree of PEB-AV-02 can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-segin-peb-av-02.dtso?h=v6.1.55_2.2.0-phy3
The device tree of PEB-AV-10 can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash-peb-av-010.dtso?h=v6.1.55_2.2.0-phy3
7.18. Power Management
7.18.1. CPU Core Frequency Scaling
The CPU in the i.MX 93 SoC is able to scale the clock frequency and the voltage. This is used to save power when the full performance of the CPU is not needed. Unlike i.MX8 M family the i.MX 93 doesn’t support Dynamic Voltage and Frequency Scaling (DVFS), but has the support of basic Voltage and Frequency Scaling (VFS). The board can be put into these modes:
nominal (ND),
overdrive (OD),
Low Drive (LD) and
Low Drive (LD) with Software Fast Frequency Change (SWFFC).
Mode |
CPU freq |
DDR data rate |
VDD_SOC |
|---|---|---|---|
OverDrive (OD) |
1.7 GHz |
3733 MT/s |
900mV |
NominalDrive (ND) |
1.4 GHz |
1866 MT/s |
850mV |
LowDrive (LD) |
900 MHz |
1866 MT/s |
800mV |
LowDrive (LD) with SWFFC |
900 MHz |
625 MT/s |
800mV |
The i.MX 93 BSP supports the VFS feature. The Linux kernel provides a LPM driver that allows setting VDD_SOC, CPU freq and DDR speed.
Note
Low-cost i.MX 93 SoC variants such as parts numbers NXP IMX9301/IMX9302 do not support VFS features. Those SoCs always run in LowDrive (LD) mode. Hence, the Linux LPM driver is disabled automatically for SoMs with such SoCs.
To put the device in OverDrive (OD) mode type:
target:~$ echo 0 > /sys/devices/platform/imx93-lpm/mode
To put the device in NominalDrive (ND) mode type:
target:~$ echo 1 > /sys/devices/platform/imx93-lpm/mode
To put the device in LowDrive (LD) mode type:
target:~$ echo 2 > /sys/devices/platform/imx93-lpm/mode
To put the device in LowDrive (LD) mode with the lowest DDR speed with SWFFC type:
target:~$ echo 3 > /sys/devices/platform/imx93-lpm/mode
To check the current CPU frequency type:
target:~$ mhzTo check the current mode and DDR frequency type:
target:~$ cat /sys/devices/platform/imx93-lpm/mode
To check the current VDD_SOC type:
target:~$ cat /sys/kernel/debug/regulator/regulator_summary
For more detailed information about the LPM driver and modes, refer to the NXPs documentation: https://docs.nxp.com/bundle/AN13917/page/topics/low_power_mode_use_cases.html
7.18.2. CPU Core Management
The i.MX 93 SoC can have multiple processor cores on the die. The i.MX 93, for example, has 2 ARM Cores which can be turned on and off individually at runtime.
To see all available cores in the system, execute:
target:~$ ls /sys/devices/system/cpu -1
This will show, for example:
cpu0/ cpu1/ cpufreq/ [...]
Here the system has two processor cores. By default, all available cores in the system are enabled to get maximum performance.
To switch off a single-core, execute:
target:~$ echo 0 > /sys/devices/system/cpu/cpu1/online
As confirmation, you will see:
[ 110.505012] psci: CPU1 killed (polled 0 ms)
Now the core is powered down and no more processes are scheduled on this core.
You can use top to see a graphical overview of the cores and processes:
target:~$ htopTo power up the core again, execute:
target:~$ echo 1 > /sys/devices/system/cpu/cpu1/online
7.18.3. Suspend to RAM
The phyCORE-i.MX93 supports basic suspend and resume. Different wake-up sources can be used. Suspend/resume is possible with:
target:~$ echo mem > /sys/power/state
#resume with pressing on/off button
To wake up with serial console run
target:~$ echo enabled > /sys/class/tty/ttyLP0/power/wakeup
target:~$ echo mem > /sys/power/state
Device can be put into suspend and waken-up with PEB-EVAL-01 S2 button
To wake up with RTC alarm check: RTC Wakealarm
7.19. Thermal Management
7.19.1. U-Boot
The previous temperature control in the U-Boot was not satisfactory. Now the u-boot has a temperature shutdown to prevent the board from getting too hot during booting. The temperatures at which the shutdown occurs are identical to those in the kernel.
The individual temperature ranges with the current temperature are displayed in the boot log:
CPU: Industrial temperature grade (-40C to 105C) at 33C
7.19.2. Kernel
The Linux kernel has integrated thermal management that is capable of monitoring SoC temperatures, reducing the CPU frequency, driving fans, advising other drivers to reduce the power consumption of devices, and – worst-case – shutting down the system gracefully (https://www.kernel.org/doc/Documentation/thermal/sysfs-api.txt).
This section describes how the thermal management kernel API is used for the i.MX 93 SoC platform. The i.MX 9 has internal temperature sensors for the SoC.
The current temperature can be read in millicelsius with:
target:~$ cat /sys/class/thermal/thermal_zone0/temp
You will get, for example:
49000
There are two trip points registered by the imx_thermal kernel driver. These differ depending on the CPU variant. A distinction is made between Commercial, Industrial and Extended Industrial.
Commercial |
Industrial |
Extended Industrial |
|
|---|---|---|---|
passive (warning) |
85°C |
95°C |
115°C |
critical (shutdown) |
90°C |
100°C |
120°C |
(see kernel sysfs folder /sys/class/thermal/thermal_zone0/)
The kernel thermal management uses these trip points to trigger events and change the cooling behavior. The following thermal policies (also named thermal governors) are available in the kernel: Step Wise and Power Allocator. The default policy used in the BSP is step_wise.
Tip
If the value of the SoC temperature in the sysfs file temp reaches trip_point_1, the board immediately shuts down to avoid any heat damage. If this doesn’t meet you expectations, an external supervisor circuit that starts the module again with X_ONOFF signal when the temperature drops below a selected trip point can be implemented
Note
The actual values of the thermal trip points may differ since we mount CPUs with different temperature grades.
7.19.3. PWM Fan
A PWM fan can be connected to the phyBOARD-Nash i.MX 93 connector X48 (label FAN).
Afterwards, a PWM fan overlay needs to be activated, otherwise PWM fan won’t be recognized.
target:~$ vi /boot/bootenv.txt
The bootenv.txt file should look like this (it can also contain other devicetree overlays!):
overlays=imx93-phyboard-nash-pwm-fan.dtbo
The changes will be applied after a reboot:
target:~$ reboot
For further information about devicetree overlays, read the device tree chapter.
The SoC only contains one temperature sensor which is already used by the thermal frequency scaling. The fan thus can not be controlled by the kernel. We use lmsensors with hwmon for this instead. lmsensors reads the temperature periodically and adjusts output PWM duty-cycle accordingly. By default, temperature threshold for PWM fan to activate is set to 60°C.
The settings can be configured in the configuration file:
/etc/fancontrol
Fan control is started by a systemd service during boot. This can be disabled with:
target:~$ systemctl disable fancontrol
7.20. Watchdog
The PHYTEC i.MX 93 modules include a hardware watchdog that is able to reset the board when the system hangs. The watchdog is started on default in U-Boot with a timeout of 60s. So even during early kernel start, the watchdog is already up and running. The Linux kernel driver takes control over the watchdog and makes sure that it is fed. This section explains how to configure the watchdog in Linux using systemd to check for system hangs and during reboot.
7.20.1. Watchdog Support in systemd
Systemd has included hardware watchdog support since version 183.
To activate watchdog support, the file system.conf in
/etc/systemd/has to be adapted by enabling the options:RuntimeWatchdogSec=60s ShutdownWatchdogSec=10min
RuntimeWatchdogSec defines the timeout value of the watchdog, while ShutdownWatchdogSec defines the timeout when the system is rebooted. For more detailed information about hardware watchdogs under systemd can be found at http://0pointer.de/blog/projects/watchdog.html. The changes will take effect after a reboot or run:
target:~$ systemctl daemon-reload
7.21. bbnsm Power Key
The X_ONOFF pin connected to the ON/OFF button can be pressed long (for 5
seconds) to trigger Power OFF without SW intervention or used to wake up the
system out of suspend. With the bbnsm_pwrkey driver, the KEY_POWER event is
also reported to userspace when the button is pressed. On default, systemd is
configured to ignore such events. The function of Power OFF without SW
intervention are not configured. Triggering a power off with systemd when
pushing the ON/OFF button can be configured under /etc/systemd/logind.conf
and set using:
HandlePowerKey=poweroff
7.22. PXP
The i.MX 93 SoC contains an PiXel Pipeline (PXP). The PXP combines the following into a single processing engine:
Scaling
Color Space Conversion (CSC)
Secondary Color Space Conversion (CSC2)
Rotation
and thus minimizes the memory footprint required for the display pipeline. How to use the PXP with Gstreamer and Wayland check the How to Use PXP in GStreamer and Wayland (AN13829) Application note from NXP.
7.23. On-Chip OTP Controller (OCOTP_CTRL) - eFuses
The i.MX 93 provides one-time programmable fuses to store information such as the MAC address, boot configuration, and other permanent settings (“On-Chip OTP Controller (OCOTP_CTRL)” in the i.MX 93 Reference Manual). The following list is an abstract from the i.MX 93 Reference Manual and includes some useful registers in the OCOTP_CTRL (at base address 0x47510000):
Name |
Bank |
Word |
Memory offset at 0x47510000 |
Description |
|---|---|---|---|---|
BOOT_CFG0 |
3 |
0 0x60 |
boot fuse settings |
|
BOOT_CFG1 |
3 |
1 0x64 |
boot fuse settings |
|
BOOT_CFG2 |
3 |
2 0x68 |
boot fuse settings |
|
BOOT_CFG3 |
3 |
3 0x6c |
boot fuse settings |
|
MAC1_ADDR |
39 |
3 |
0x4ec |
contains lower 32 bits of ENET0 MAC address |
MAC1/2_ADDR |
39 |
4 |
0x4f0 |
contains upper 16 bits of ENET0 MAC address and the lower 16 bits of ENET1 MAC address |
MAC2_ADDR |
39 |
5 |
0x4f4 |
contains upper 32 bits of ENET1 MAC address |
A complete list and a detailed mapping between the fuses in the OCOTP_CTRL and the boot/mac/… configuration are available in the section “Fuse Map” of the i.MX 93 Security Reference Manual.
7.23.1. Reading Fuse Values in uBoot
MAC1_ADDR:
u-boot=> fuse read 39 3
7.23.2. Reading Fuse Values in Linux
To access the content of the fuses in Linux NXP provides the NVMEM_IMX_OCOTP module. All fuse content of the memory-mapped shadow registers is accessible via sysfs:
target:~$ hexdump /sys/devices/platform/soc\@0/47510000.efuse/fsb_s400_fuse0/nvmem
7.23.3. Burning MAC addresses
Let’s say we want to burn the following MAC addresses:
MAC1 |
12:34:56:78:90:Aa |
MAC2 |
Bb:Cc:Dd:Ee:Ff:D0 |
We would execute this in u-boot:
u-boot=> fuse prog 39 3 0x567890Aa
u-boot=> fuse prog 39 4 0xFfD01234
u-boot=> fuse prog 39 5 0xBbCcDdEe
7.23.4. Burning Boot Fuses
Warning
Fuses can only be written once! You can brick your board easily by burning the wrong boot configuration. It cannot be reversed!
Which fuse bank/word should be used to program the BOOT_CFGX can be checked in i.MX 93 Applications Processor Reference Manual attached spreadsheet named i.MX93_Fusemap.xlsx.
These values should be written to the BOOT_CFG0, which can be read/written from fuses on Bank 3, Word 0.
Boot Device |
BOOT_CFG0 |
|---|---|
eMMC |
0x20020002 |
SD Card |
0x20000103 |
To set internal fuses to boot from eMMC one can program them with:
u-boot=> fuse prog 3 0 0x20020002
In this example we:
set the Boot_Mode to 0b0010 (eMMC) with BOOT_CFG0[3:0],
set the eMMC Bus width to 0b01 (8 bit) with BOOT_CFG0[18:17]
set the BT_FUSE_SEL (Boot fuses already programmed) bit with BOOT_CFG0[29]
Make sure you set the right bits by reading the Boot Fusemap chapter in i.MX 93 Applications Processor Reference Manual.
7.24. TPM
The phyBOARD-Nash i.MX 93 is equipped with a Trusted Platform Module (TPM) that provides hardware-based security functions.
Here are some useful examples to work with the TPM
Generate 4-byte random value with TPM2 tools:
target:~$ tpm2_getrandom --hex 4
Generate 4-byte random value with OpenSSL tools:
target:~$ openssl rand -engine libtpm2tss --hex 4
Generate RSA private key and validate its contents:
target:~$ openssl genrsa -engine libtpm2tss -out /tmp/priv_key 512 Engine "tpm2tss" set. target:~$ openssl rsa -check -in /tmp/priv_key -noout RSA key ok target:~$ cat /tmp/priv_key -----BEGIN PRIVATE KEY----- MIIBVQIBADANBgkqhkiG9w0BAQEFAASCAT8wggE7AgEAAkEAxsvmcbxjwuKnYeuZ 2AVBmuLvYyqF/LpYOD3IB/v+YvEolxdGGmjiFLECU6xZ1j3+dIt4Y1zbcKS1OcWT I8mbSwIDAQABAkBoy8wrYNhmP/1kzUJIclznPYJckGoZlFI1M7xjGSA9H1xDK6if 5g5CYCHPrbBp8e0mEokPRZoihxxzGTxGPiahAiEA/7OYMOpVZ5SD3YcRsWcQlkWI MOSPUYg6vxvGG9xp4FcCIQDHB01RoHr+qXJwxIu3/3oQAUBI4ACJ4JRp0KelwhC0 LQIhANJzSvg/dak5l8pU55/99q3nbm7nPnnZSJiP0F6P62gjAiEAjf7qrfMF7Uyt RkEjwbl2t5Z868FNARGGMVxZT4x+aF0CIGxlmP2pL8xFu1bWB282LSedqZUdQwel Lxi7+svb2+uJ -----END PRIVATE KEY-----
Note
Do NOT share your private RSA keys if you are going to use these keys for any security purposes.
Generate RSA public key and validate its contents:
target:~$ openssl rsa -in /tmp/test_key -pubout -out /tmp/pub_key writing RSA key target:~$ openssl pkey -inform PEM -pubin -in /tmp/pub_key -noout target:~$ cat /tmp/pub_key -----BEGIN PUBLIC KEY----- MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBAMbL5nG8Y8Lip2HrmdgFQZri72Mqhfy6 WDg9yAf7/mLxKJcXRhpo4hSxAlOsWdY9/nSLeGNc23CktTnFkyPJm0sCAwEAAQ== -----END PUBLIC KEY-----
Device tree TPM configuration can be found here: https://git.phytec.de/linux-imx/tree/arch/arm64/boot/dts/freescale/imx93-phyboard-nash.dts?h=v6.1.55_2.2.0-phy3#n151
8. i.MX 93 M33 Core
In addition to the Cortex-A55 cores, there is a Cortex-M33 Core as MCU integrated into the i.MX 93 SoC. Our Yocto-Linux-BSP runs on the A55-Cores and the M33 Core can be used as a secondary core for additional tasks using bare-metal firmware. Both cores have access to the same peripherals and thus peripheral usage needs to be limited either in the M33 Core’s firmware or the devicetree for the Linux operating system.
Our Yocto-BSP contains pre-built firmware examples for M33 Core from NXP.
This section describes how to run pre-built M33 Core firmware examples on phyBOARD-Segin/Nash i.MX 93.
8.1. Running M33 Core Examples
There are two ways to run the M33 Core firmware examples, from U-Boot bootloader and from Remoteproc subsystem within a running Linux.
To receive debug messages start your favorite terminal software (e.g. Minicom, Tio, or Tera Term) on your host PC and configure it for 115200 baud, 8 data bits, no parity, and 1 stop bit (8n1) with no handshake.
On phyBOARD-Segin/Nash i.MX 93 an external “USB TTL to serial adapter” is required. Adapter’s I/O pins should be able to operate at 3.3V voltage levels.
Connect external “USB TTL to serial adapter” signals to the X16 connector on the board according to the following table:
USB-TTL adapter pins |
X16 signal |
X16 pin |
|---|---|---|
RXD |
X_UART2_TX |
5 |
TXD |
X_UART2_RX |
8 |
GND |
GND |
4 |
8.1.1. Running Examples from U-Boot
To load firmware examples using the U-Boot bootloader, the bootaux command
can be used:
Prepare an SD Card with our Yocto-BSP
Stop the autoboot by pressing any key
List available M33 Core firmware examples on the first partition of SD Card:
u-boot=> ls mmc 1
Note
Available firmware examples start with imx93-11x11-evk_m33_TCM_* and
end with *.bin. Examples come from NXP’s Yocto layer meta-imx and are
selected based on compatibility with phyBOARD-Segin/Nash i.MX 93 hardware.
Load desired firmware example:
u-boot=> fatload mmc 1 ${loadaddr} <firmware.bin>
u-boot=> cp.b ${loadaddr} 0x201e0000 ${filesize}
u-boot=> run prepare_mcore
u-boot=> bootaux 0x1ffe0000 0
## Starting auxiliary core addr = 0x1FFE0000...
The program’s output should appear on the M33 Core’s debug UART.
8.1.2. Running Examples from Linux using Remoteproc
Remoteproc is a module that allows you to control the M33 Core from Linux during runtime. Firmware examples for M33 Core can be loaded and the execution started or stopped within Linux. To use Remoteproc a devicetree overlay needs to be set:
Edit the bootenv.txt file located in the /boot directory on the target
by adding imx93-phycore-rpmsg.dtso:
overlays=imx93-phyboard-segin-peb-av-02.dtbo imx93-phycore-rpmsg.dtso
Restart the target and execute in U-Boot:
u-boot=> run prepare_mcore
Firmware examples *.elf files for the M33 Core can be found under
/lib/firmware. List available firmware examples:
target:~$ ls /lib/firmware/*.elf
To load the firmware, type:
target:~$ echo /lib/firmware/<firmware>.elf > /sys/class/remoteproc/remoteproc0/firmware
target:~$ echo start > /sys/class/remoteproc/remoteproc0/state
To load a different firmware, the M33 Core needs to be stopped:
target:~$ echo stop > /sys/class/remoteproc/remoteproc0/state
Note
The samples found in /lib/firmware on the target come from NXP’s
Yocto layer meta-imx and are selected based on compatibility with phyBOARD-Segin/Nash i.MX 93
hardware.
Some firmware examples from NXP require additional Linux kernel modules to be loaded.
For example, when loading imx93-11x11-evk_m33_TCM_rpmsg_lite_str_echo_rtos.elf
firmware, one requires corresponding imx_rpmsg_tty module to be loaded:
target:~$ modprobe imx_rpmsg_tty
This exposes an RPMsg endpoint as a virtual TTY at /dev/ttyRPMSG30.
Now it is possible to send messages from A55 Core to M33 Core by typing:
target:~$ echo "PHYTEC" > /dev/ttyRPMSG30
Observing M33 Core debug UART should result in the following output:
RPMSG String Echo FreeRTOS RTOS API Demo...
Nameservice sent, ready for incoming messages...
Get Message From Master Side : "PHYTEC" [len : 6]
